Components And Components Location: Components

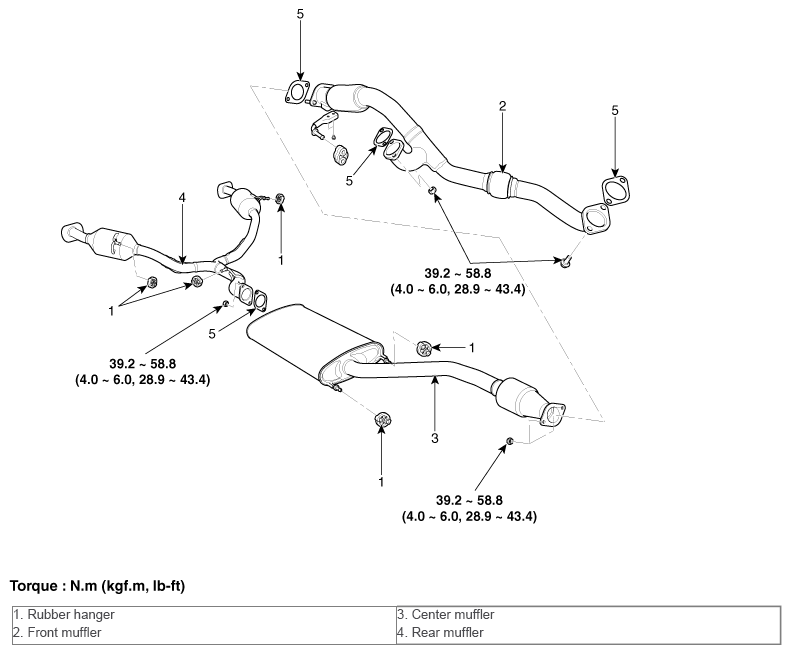

Fig 1: Muffler Components And Catalytic Converter With Torque Specifications

G10574673

Courtesy of HYUNDAI MOTOR AMERICA
