Components and Components Location: Components

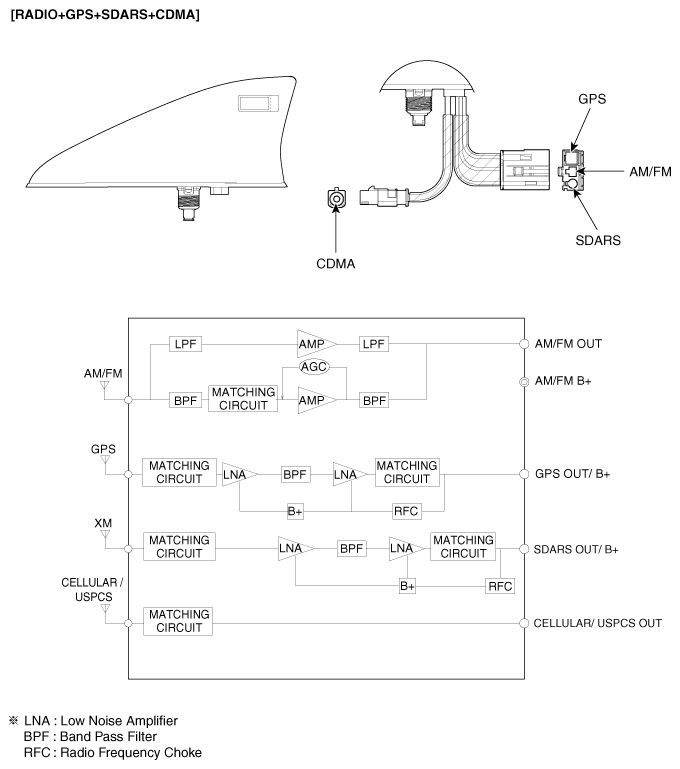

Fig 1: Roof Antenna Circuit Diagram - US
G10576603Courtesy of HYUNDAI MOTOR AMERICA

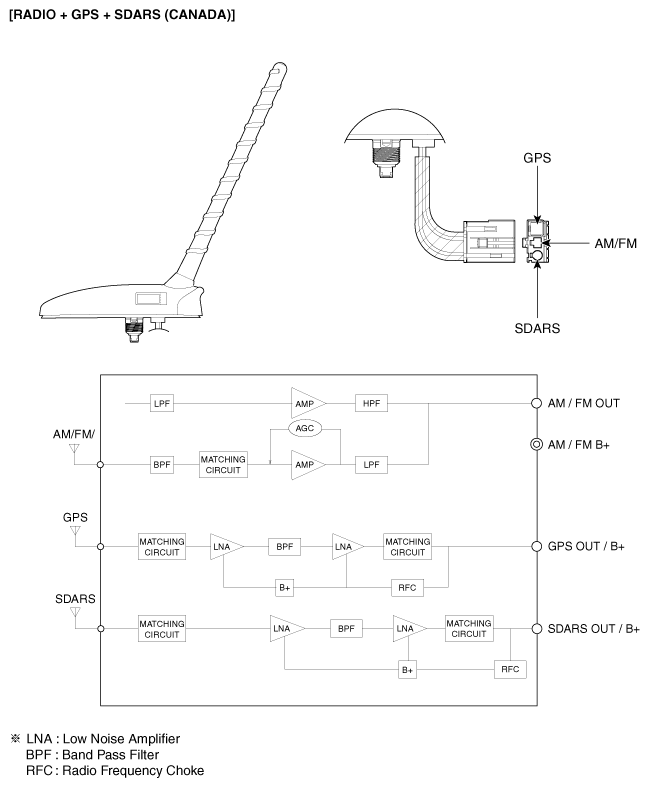

Fig 2: Roof Antenna Circuit Diagram - Canada
G10576604Courtesy of HYUNDAI MOTOR AMERICA
