Components and Components Location: Components
WARNING: This page is about a different car, the 2016 Hyundai Genesis and 2015 Hyundai Genesis. However, it is still accessible from the selected car via links, so may be relevant.

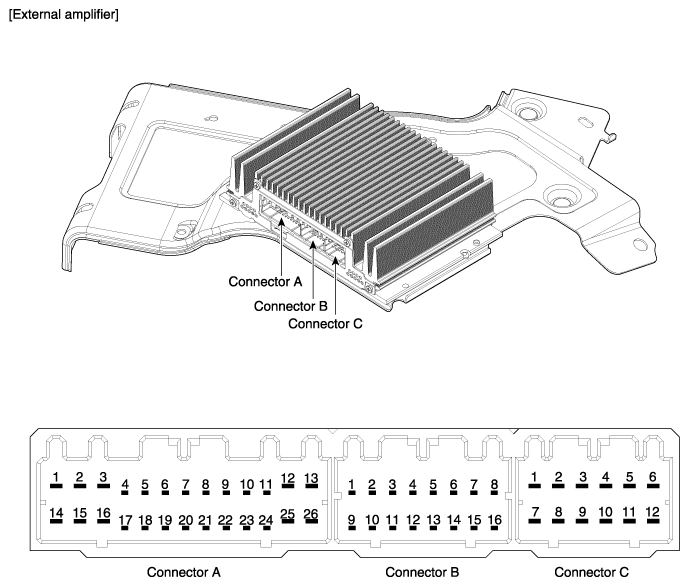

| NO. | Connector A | NO. | Connector B | NO. | Connector C |
|---|---|---|---|---|---|
| 1 | B (+) | 1 | - | 1 | Right side low (+) |
| 2 | B (+) | 2 | - | 2 | Left side low (+) |
| 3 | B (+) | 3 | - | 3 | Right front midrange/tweeter (+) |
| 4 | - | 4 | - | 4 | Left front midrange/tweeter (+) |
| 5 | Multimedia-CAN (high) | 5 | - | 5 | Right front door (+) |
| 6 | Multimedia-CAN (low) | 6 | - | 6 | Left front door (+) |
| 7 | ACC | 7 | - | 7 | Right side low (-) |
| 8 | - | 8 | - | 8 | Left side low (-) |
| 9 | - | 9 | - | 9 | Right front midrange/tweeter (-) |
| 10 | - | 10 | - | 10 | Left front midrange/tweeter (-) |
| 11 | NAVI sound (+) | 11 | - | 11 | Right front door (-) |
| 12 | Sub woofer 2 (+) | 12 | - | 12 | Left front door (-) |
| 13 | Sub woofer 1 (+) | 13 | - | 13 | |
| 14 | GND | 14 | - | 14 | |
| 15 | GND | 15 | - | 15 | |
| 16 | GND | 16 | - | 16 | |
| 17 | - | 17 | 17 | ||
| 18 | SPDIF (+) | 18 | 18 | ||
| 19 | SPDIF (-) | 19 | 19 | ||
| 20 | SPDIF GND (shield) | 20 | 20 | ||
| 21 | - | 21 | 21 | ||
| 22 | - | 22 | 22 | ||
| 23 | - | 23 | |||
| 24 | NAVI sound (-) | 24 | |||
| 25 | Sub woofer 2 (-) | 25 | |||
| 26 | Sub woofer 1 (-) | 26 |
