Components And Components Location: Components

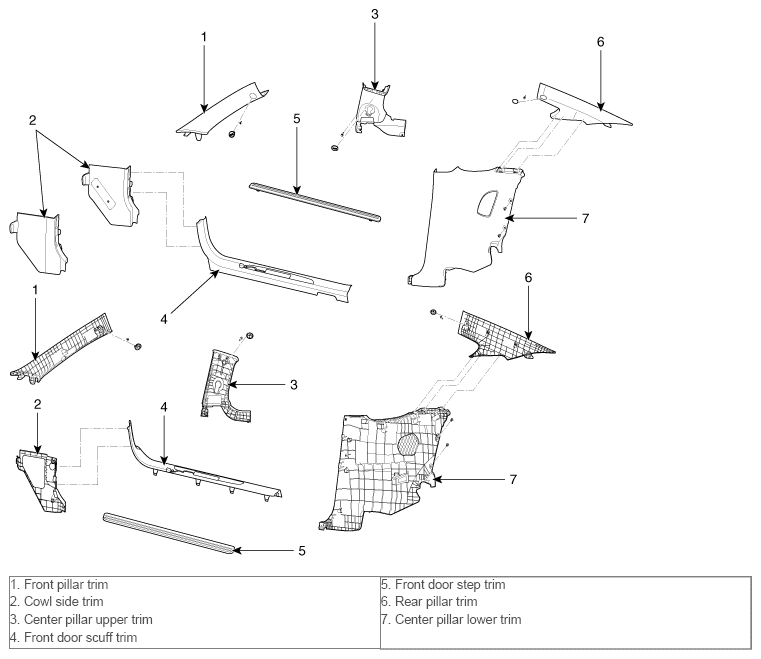

Fig 1: Interior Trim Components

G10489975

Courtesy of HYUNDAI MOTOR AMERICA
