Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

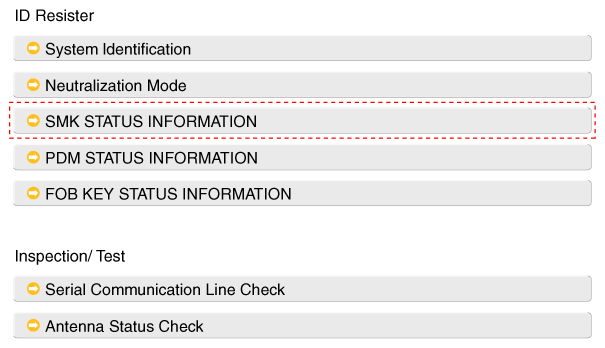

    Fig 1: Screen Display - Selecting Smart Key Status Information (1 Of 2)
    G10490191Courtesy of HYUNDAI MOTOR AMERICA

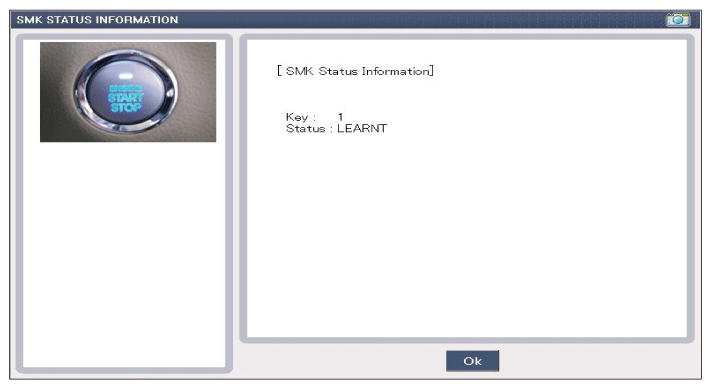

    Fig 2: Screen Display - Selecting Smart Key Status Information (2 Of 2)
    G10490192Courtesy of HYUNDAI MOTOR AMERICA
