Components and Components Location: Components

WARNING: This page is about a different car, the 2016 Hyundai Genesis and 2015 Hyundai Genesis. However, it is still accessible from the selected car via links, so may be relevant.

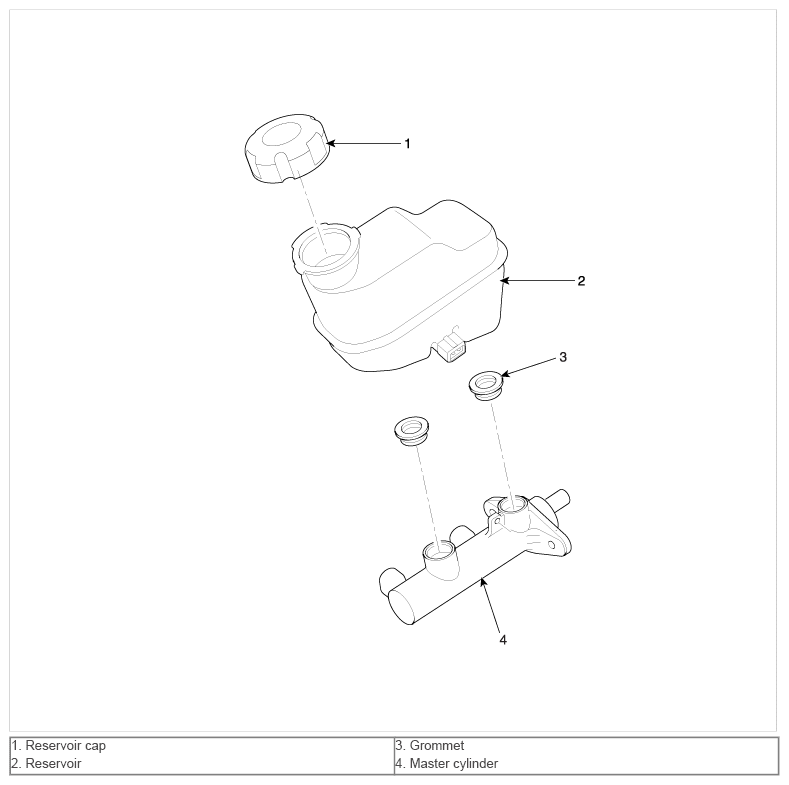

Fig 1: Master Cylinder Components
G10453279Courtesy of HYUNDAI MOTOR AMERICA
