Components Location

WARNING: This page is about a different variant/trim than selected.

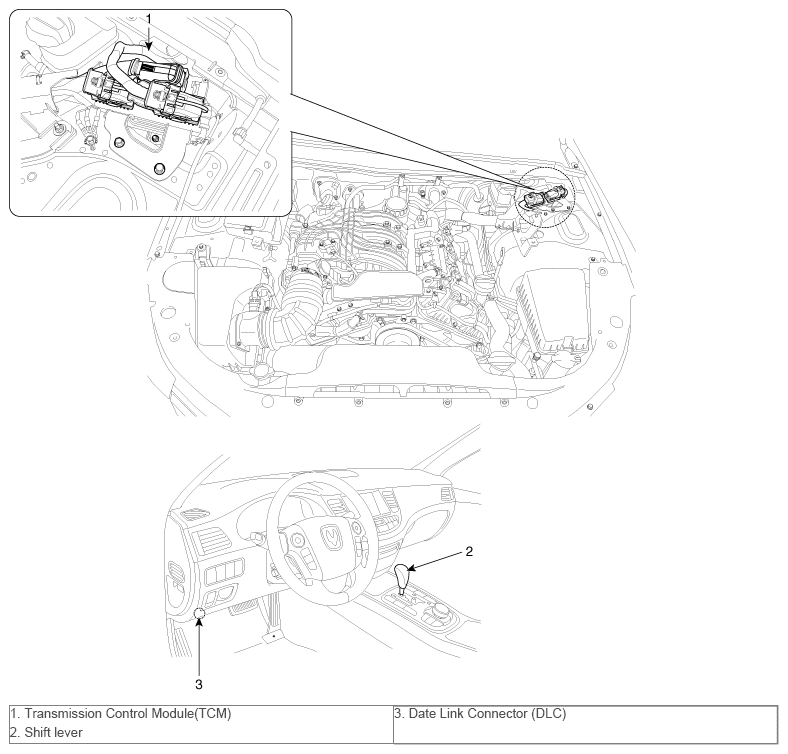

Vehicle Components

Fig 1: Vehicle Transmission Control Components Location
G10480518Courtesy of HYUNDAI MOTOR AMERICA

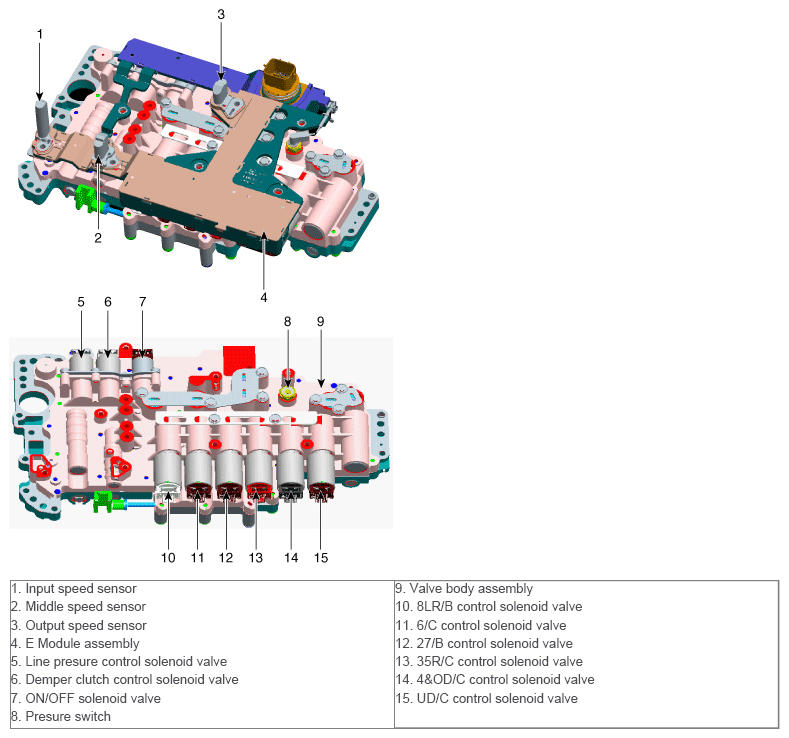

Transmission Components

Fig 2: Internal Transmission Control Components Location
G10480519Courtesy of HYUNDAI MOTOR AMERICA
