Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

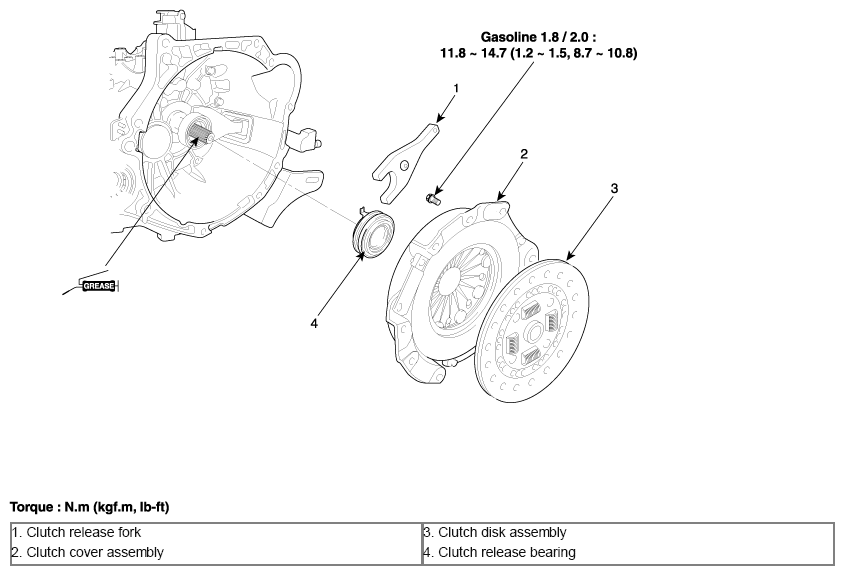

Fig 1: Clutch Cover And Disc Component Locations With Torque Specifications
G10537819Courtesy of HYUNDAI MOTOR AMERICA
