Component Location

WARNING: This page is about a different car, the 2016 Hyundai Elantra and 2015 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

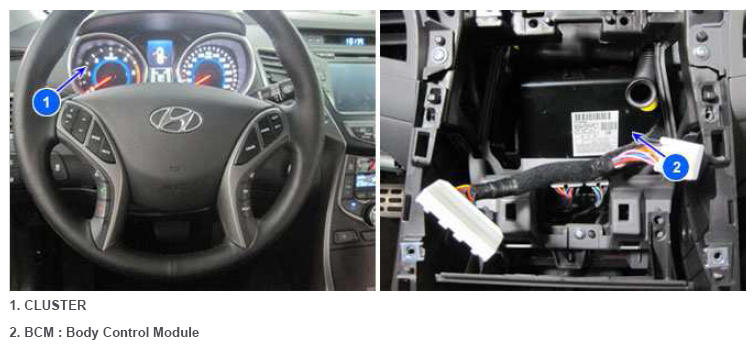

Fig 1: Cluster And Body Control Module Component Locations
G10538697Courtesy of HYUNDAI MOTOR AMERICA
