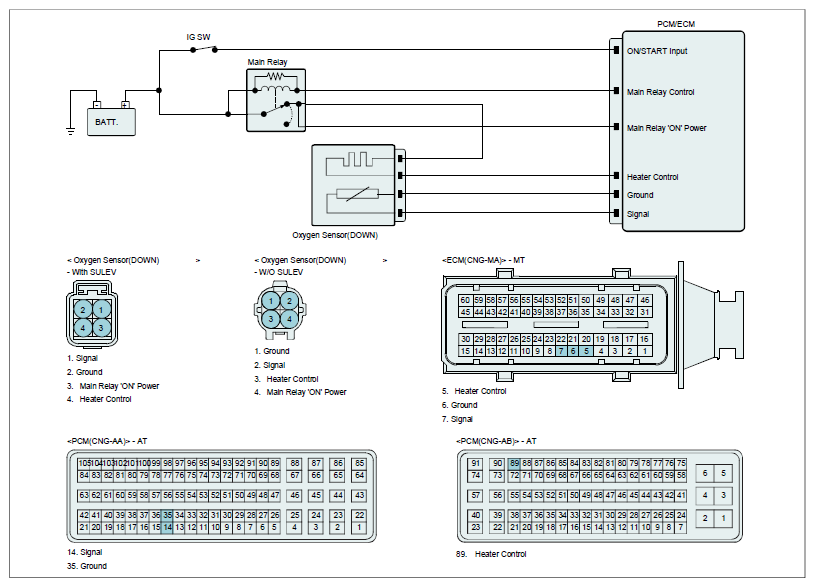

Home >> Hyundai >> 2015 >> Elantra Coupe SE, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 1.8L (2 Of 6) >> DTC P0136: O2 Sensor Circuit (Bank 1/Sensor 2) >> General Information >> Diagnostic Circuit Diagram
