Home >> Hyundai >> 2015 >> Elantra Coupe SE, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub/Knuckle >> Components and Components Location >> Components

Components and Components Location: Components

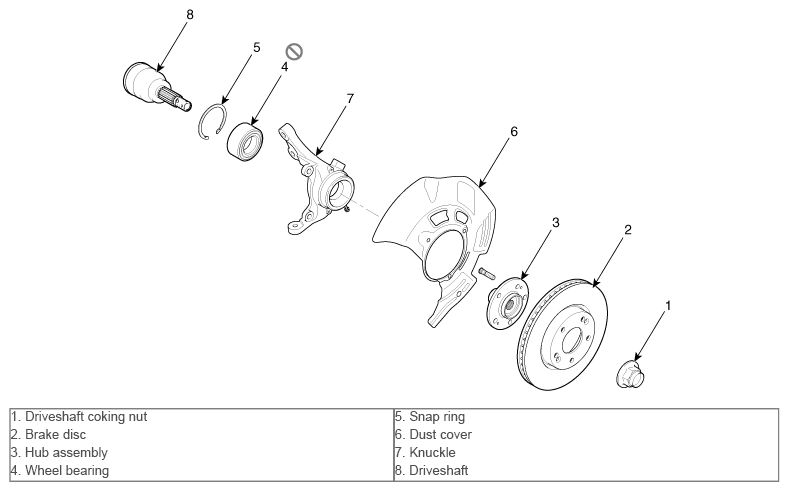

Fig 1: Identifying Front Hub Knuckle Components

G10544679

Courtesy of HYUNDAI MOTOR AMERICA
