Repair Procedures: Removal

  1. Remove the rear wheel and tire.

    Tightening Torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

  2. Remove the rear wheel speed sensor mounting bolt (A).

    Tightening Torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

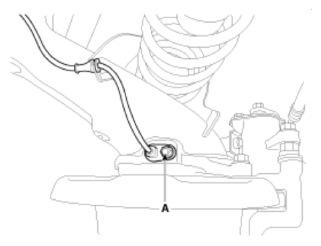

    Fig 1: Rear Wheel Speed Sensor Mounting Bolt Location
    G10548651Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the rear wheel speed sensor cable mounting bolt.
  4. Remove the Rear Seat Back.

    (Refer to: Body procedure - "REAR SEAT ").

  5. Disconnect the rear wheel speed sensor connector (A), and than remove the rear wheel speed sensor.

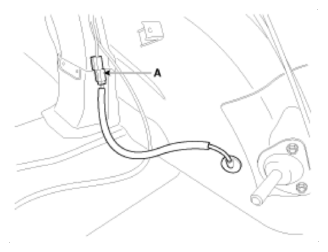

    Fig 2: Rear Wheel Speed Sensor Connector Location
    G10548652Courtesy of HYUNDAI MOTOR AMERICA
  6. Installation is the reverse of removal.
    CAUTION: Install the rear sensor after lubricating the O-ring of sensor with the assembly fluid (RAREMAX AF-1).

    When inserting the sensor, take care the O-Ring not to be damaged.
