Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

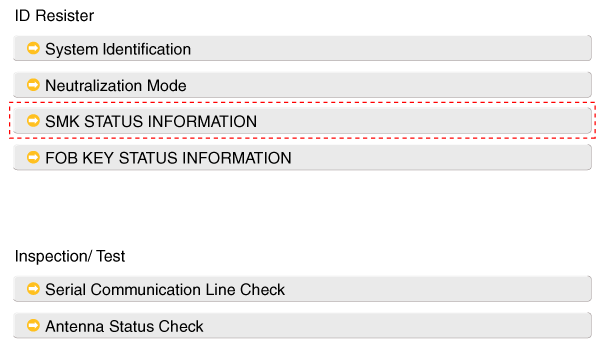

    Fig 1: Display - SMK Status Information Screen (1 Of 2)
    G10545540Courtesy of HYUNDAI MOTOR AMERICA

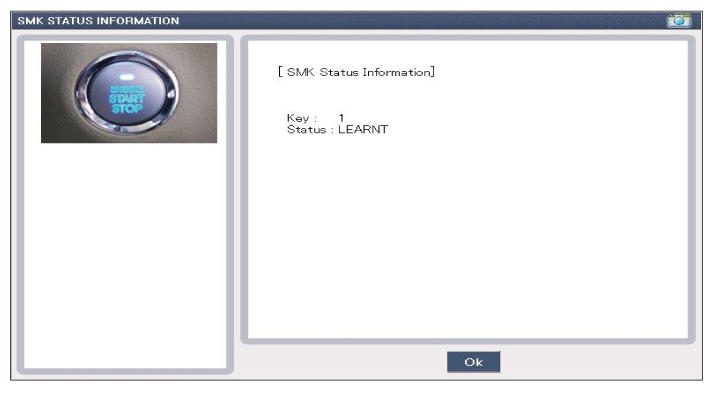

    Fig 2: Display - SMK Status Information Screen (2 Of 2)
    G10545541Courtesy of HYUNDAI MOTOR AMERICA
