Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "Neutralization mode".

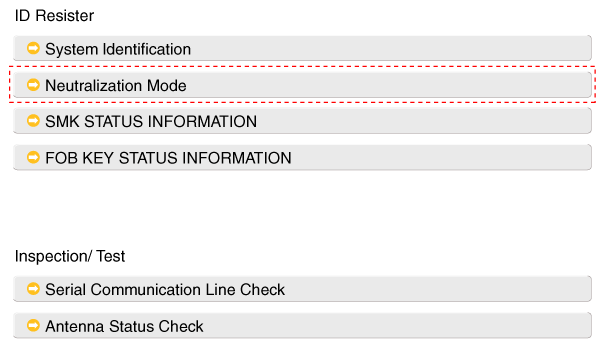

Fig 1: Display - Neutralization Mode Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

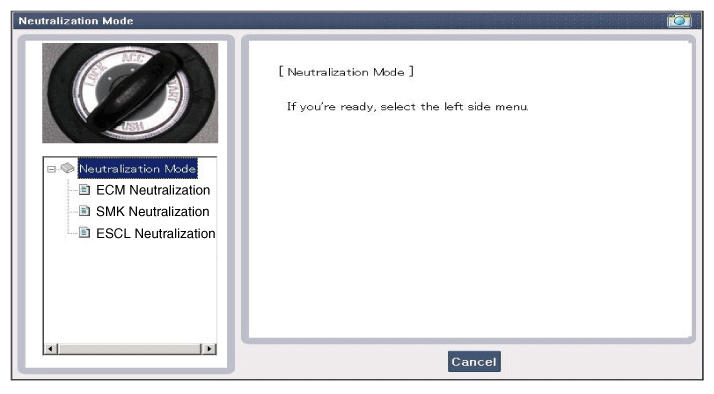

Fig 2: Display - Neutralization Mode Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

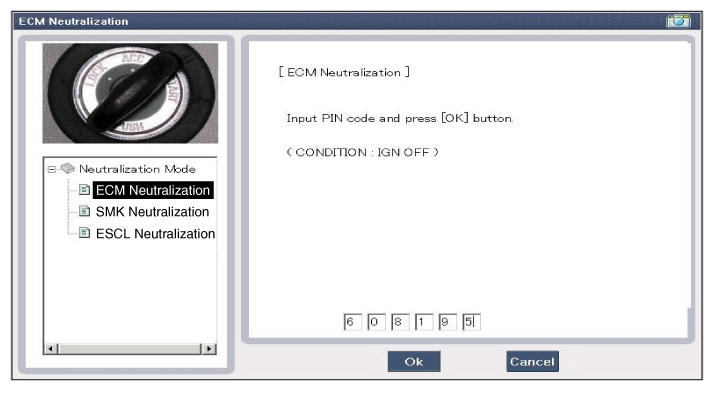

Fig 3: Display - ECM Neutralization Mode Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

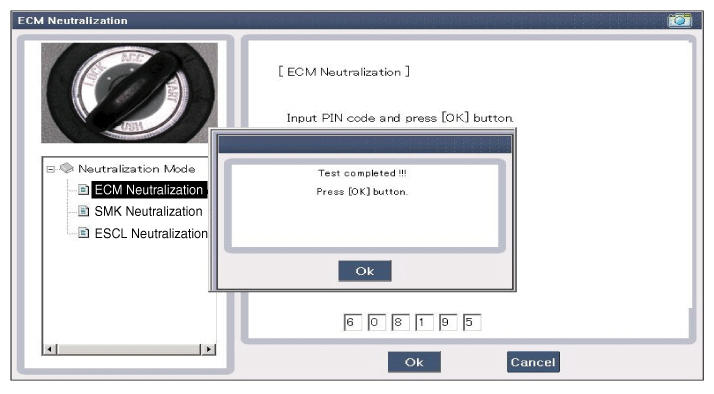

Fig 4: Display - ECM Neutralization Mode Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

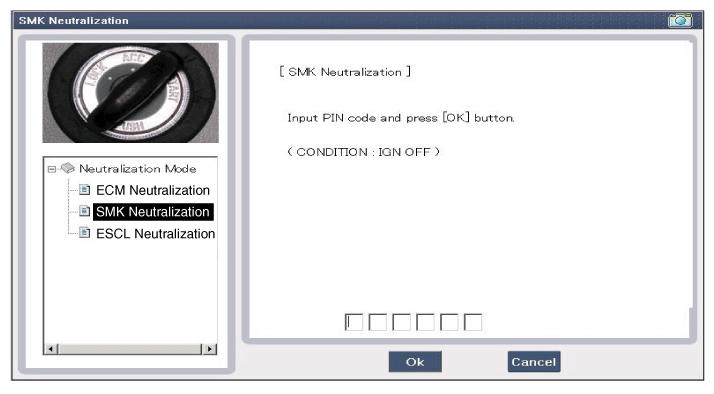

Fig 5: Display - SMK Neutralization Mode Screen (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

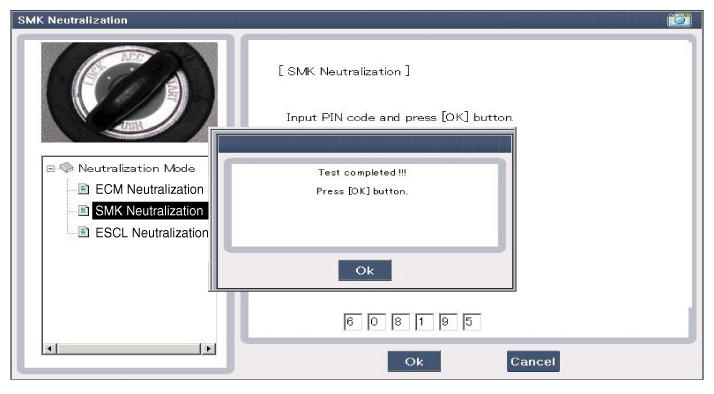

Fig 6: Display - SMK Neutralization Mode Screen (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Display - SMK Neutralization Mode Screen (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
