Repair Procedures: Inspection: Notes

  1. Check the audio remote control switch for resistance between connector 3 and 4 in each switch position.

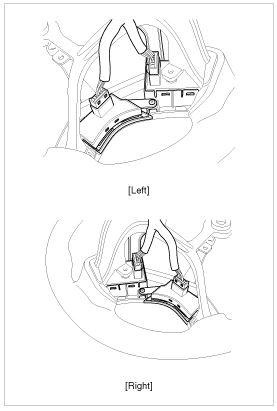

    2. Fig 1: Checking Audio Remote Control Switch Resistance
    G00564058Courtesy of HYUNDAI MOTOR AMERICA
