Trouble Diagnostics When Using GDS

Fig 1: Locating Lower Dash Panel

Courtesy of HYUNDAI MOTOR AMERICA

The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.
To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

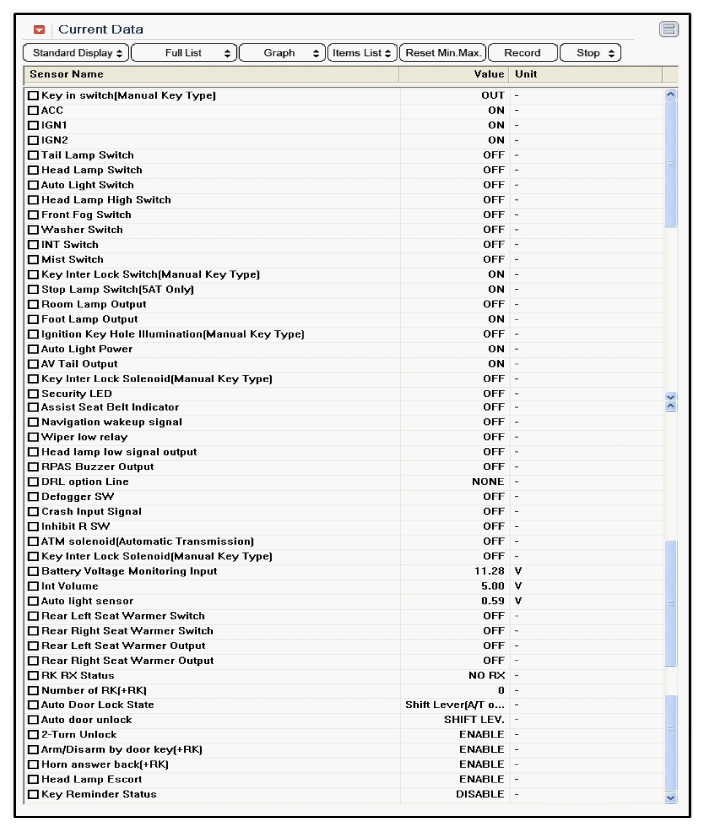

- BCM Service data

  Fig 2: Display - BCM Service Data Screen
  Courtesy of HYUNDAI MOTOR AMERICA

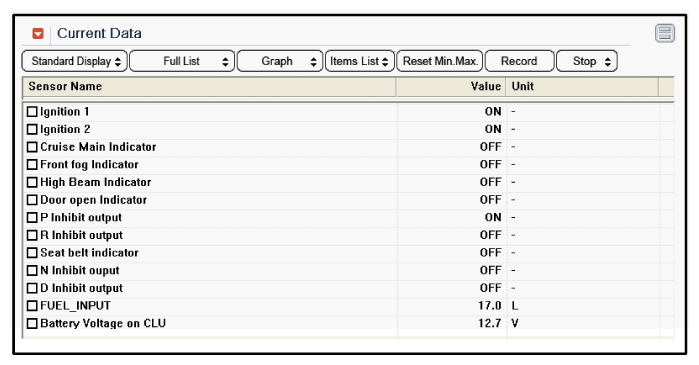

- CLU (Cluster) Service data

  Fig 3: Display - CLU (Cluster) Service Data Screen
  Courtesy of HYUNDAI MOTOR AMERICA

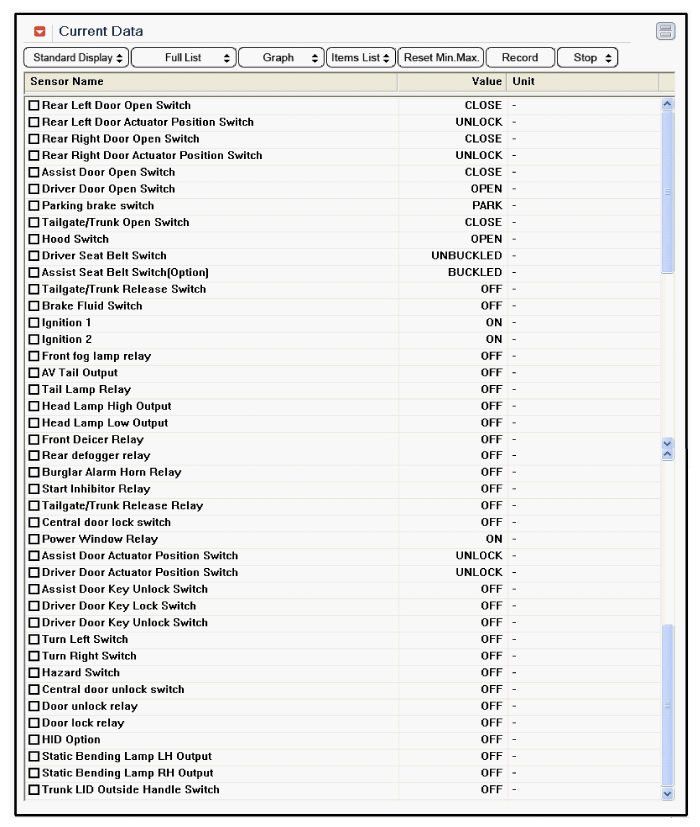

- SJB (Smart junction box) Service data

  Fig 4: Display - SJB (Smart Junction Box) Service Data Screen
  Courtesy of HYUNDAI MOTOR AMERICA

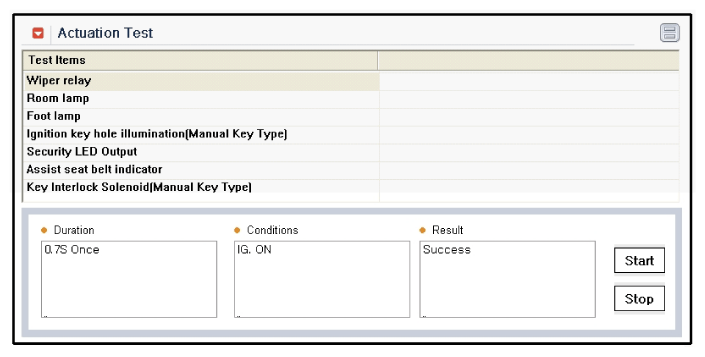

To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

Fig 5: Display - BCM Actuation Test Screen
Courtesy of HYUNDAI MOTOR AMERICA
