Home >> Hyundai >> 2015 >> Elantra Coupe GLS, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Rear Wheel Speed Sensor >> Components and Components Location >> Components

Components and Components Location: Components

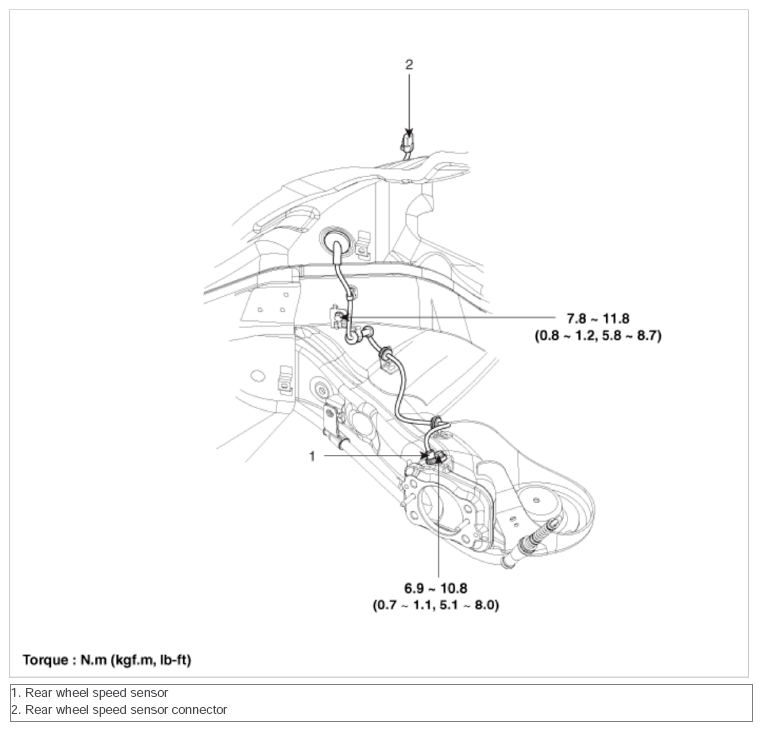

Fig 1: Rear Wheel Speed Sensor Bolts Location With Torque Specifications

G10545143

Courtesy of HYUNDAI MOTOR AMERICA
