Signal Waveform

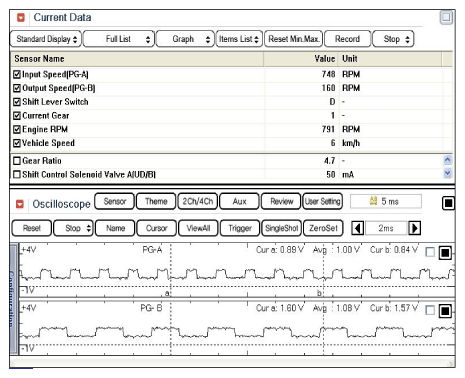

Fig 1: Display - Input/Output Speed Sensor At Low Speed Signal Waveform Screen
G10544609Courtesy of HYUNDAI MOTOR AMERICA

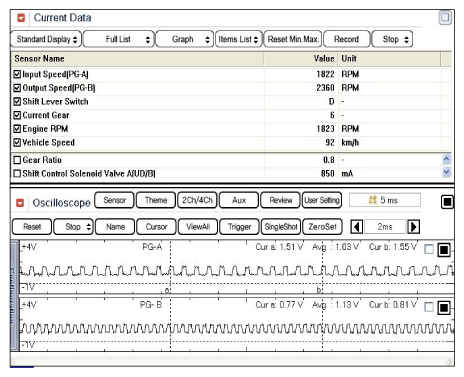

Fig 2: Display - Input/Output Speed Sensor At High Speed Signal Waveform Screen
G10544610Courtesy of HYUNDAI MOTOR AMERICA
