Home >> Hyundai >> 2015 >> Elantra Coupe GL, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 1.8L >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

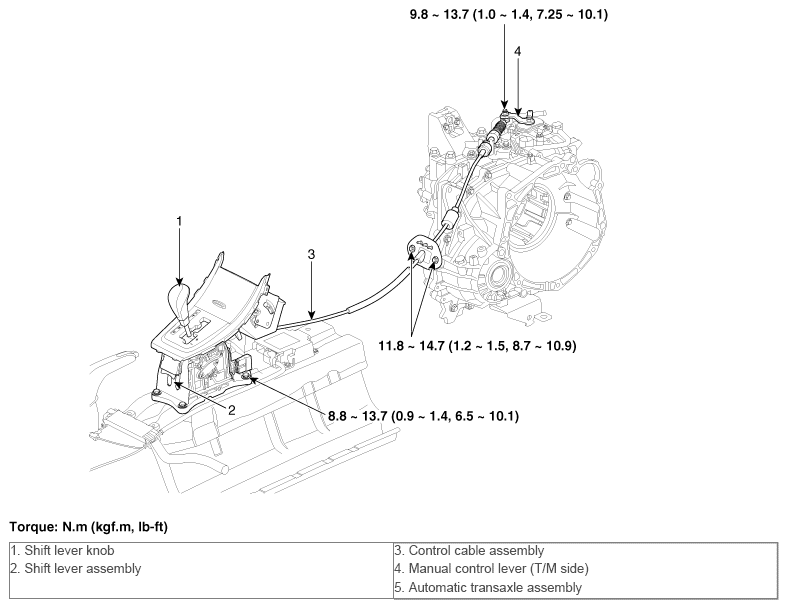

Fig 1: Shift Lever Related Components With Torque Specifications

G10549049

Courtesy of HYUNDAI MOTOR AMERICA
