Signal Waveform

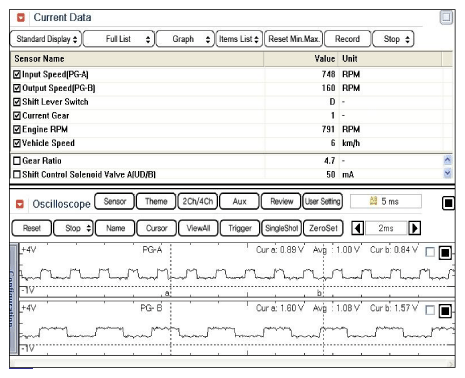

Fig 1: Screen Display - Input/Output Speed Sensor At Low Speed
G10548987Courtesy of HYUNDAI MOTOR AMERICA

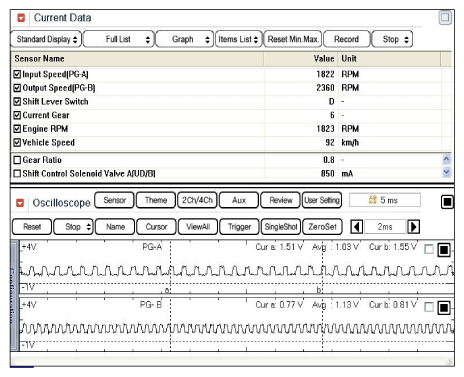

Fig 2: Screen Display - Input/Output Speed Sensor At High Speed
G10548988Courtesy of HYUNDAI MOTOR AMERICA
