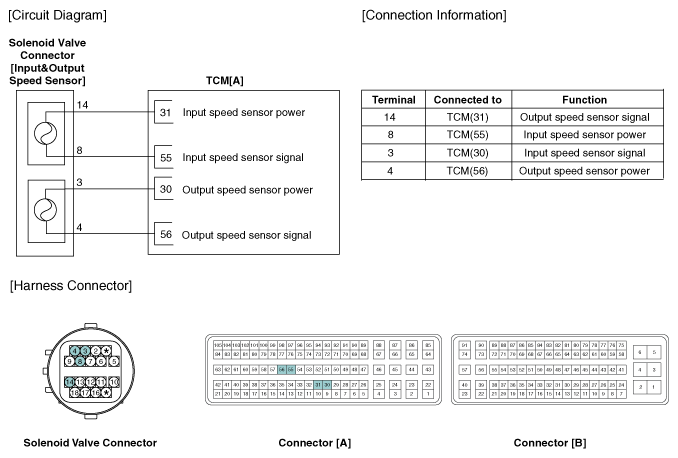

Home >> Hyundai >> 2015 >> Elantra Coupe GL, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 1.8L >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
