Circuit Diagram

(M/T)

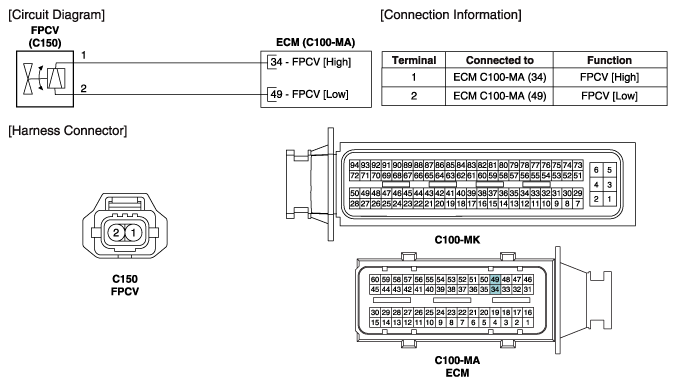

Fig 1: FPCV Circuit Diagram (M/T)

G10544382

Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

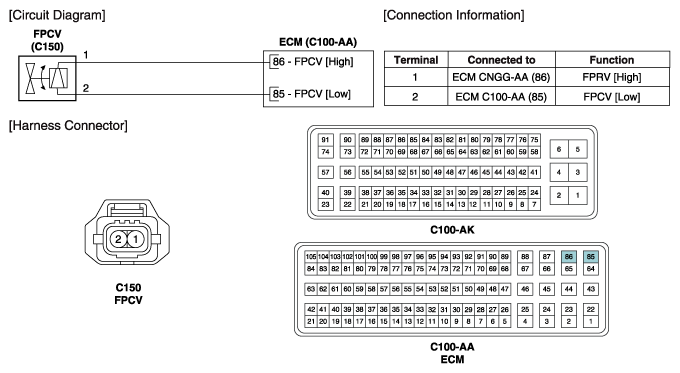

Fig 2: FPCV Circuit Diagram (A/T)

G10544383

Courtesy of HYUNDAI MOTOR AMERICA
