Home >> Hyundai >> 2015 >> Elantra Coupe GL, Automatic Trans >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start Stop Button >> Component and Component Location >> Component

Component and Component Location: Component

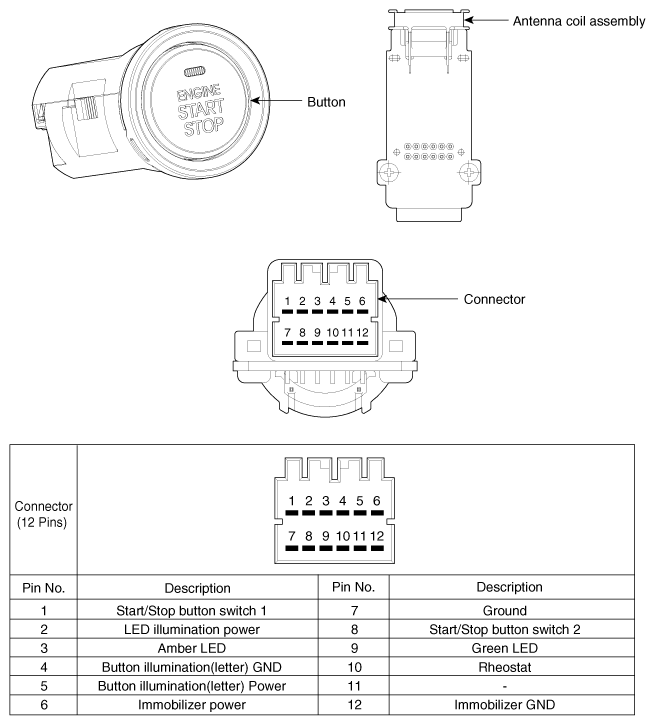

Fig 1: Start Stop Button, Antenna Coil Assembly & Connector End View
G10545980Courtesy of HYUNDAI MOTOR AMERICA
