Home >> Hyundai >> 2015 >> Azera Base >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Oil Level Gauge & Pipe >> Components and Components Location >> Components

Components and Components Location: Components

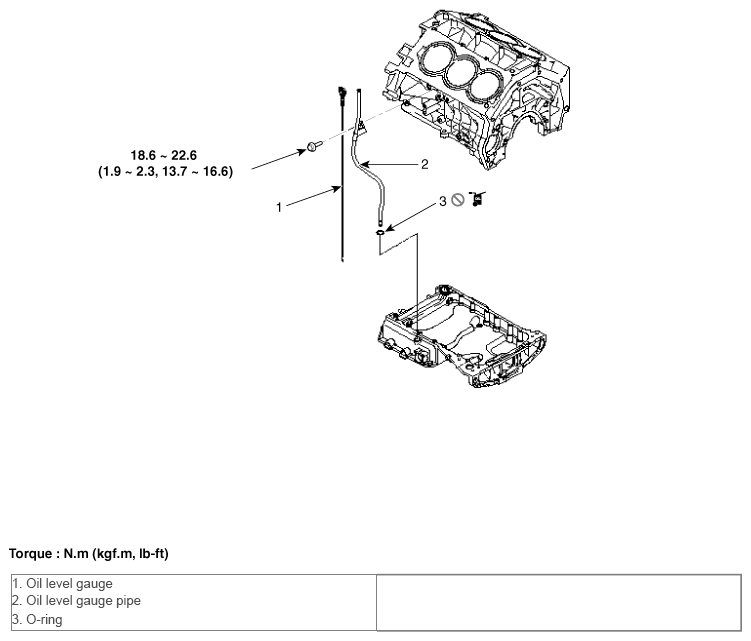

Fig 1: Oil Level Gauge And Pipe Components With Torque Specifications

G10367142

Courtesy of HYUNDAI MOTOR AMERICA
