Repair procedures: Replacement

CAUTION:
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  • Put on gloves to protect your hands.
  1. Remove the trunk trim.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.

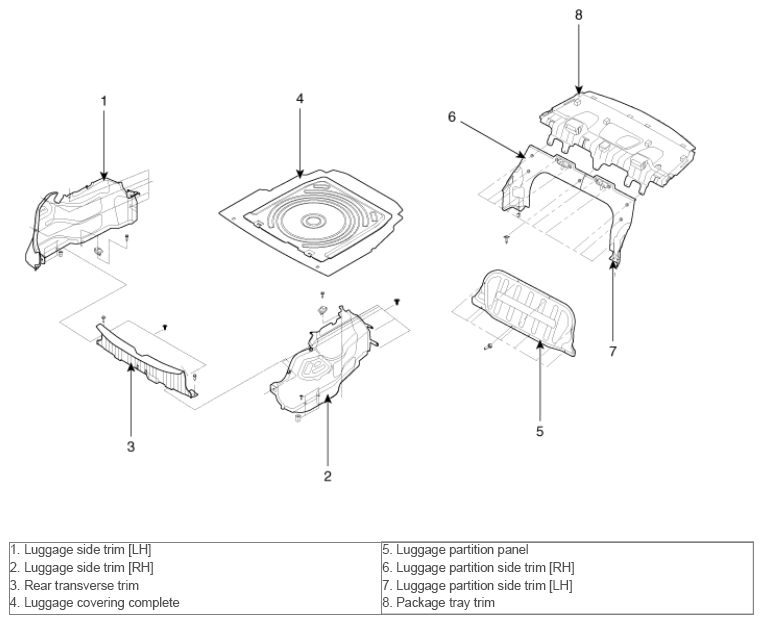

    Fig 1: Trunk Trim Components
    G10368573Courtesy of HYUNDAI MOTOR AMERICA
