Signal Waveform

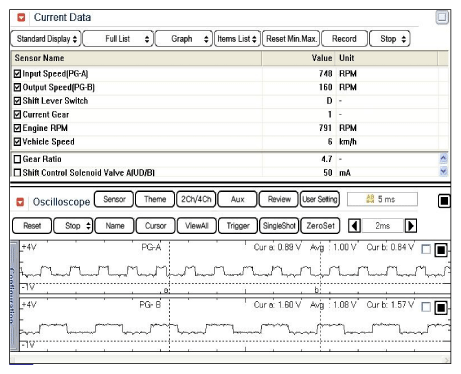

Fig 1: Display - Input/Output Speed Sensor Signal Waveform (Low Speed)
G10367685Courtesy of HYUNDAI MOTOR AMERICA

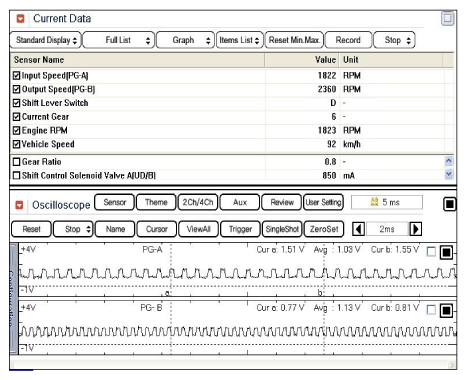

Fig 2: Display - Input/Output Speed Sensor Signal Waveform (High Speed)
G10367686Courtesy of HYUNDAI MOTOR AMERICA
