Home >> Hyundai >> 2015 >> Accent GS, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Starter >> Components and Components Location >> Components

Components and Components Location: Components

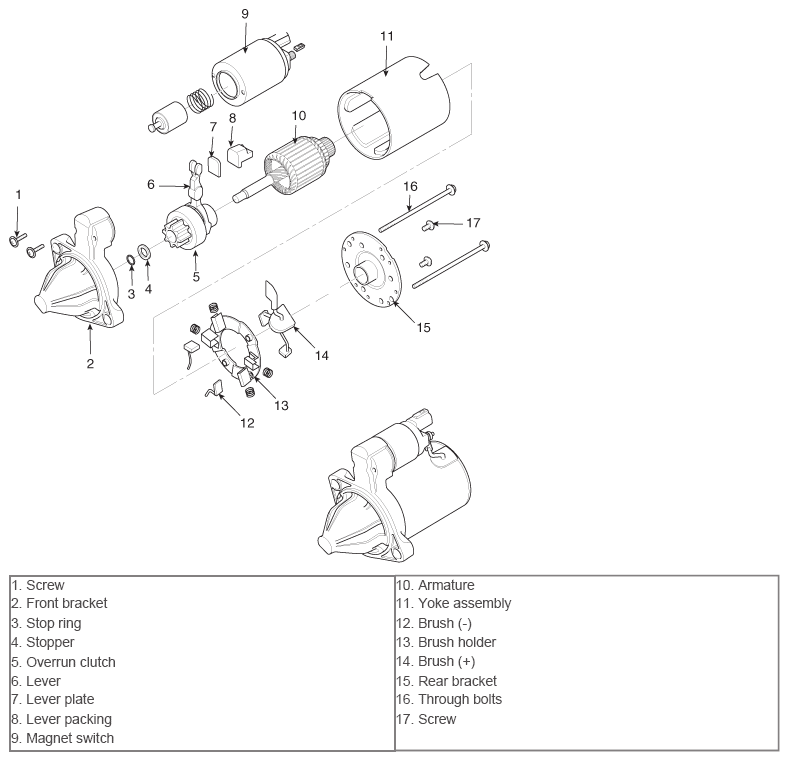

Fig 1: Starter Components

G10362314

Courtesy of HYUNDAI MOTOR AMERICA
