Special Service Tools

Tools (Number and name)

Illustration

Use

09200-3N000 Engine support fixture (Beam)

Removal and installation of the transaxle.
Use this adapter (SST No.: 09200-4X000) with the supporter (SST No.: 09200-2S100, 09200-2S200).
⁽¹⁾Permit operating with 09200-38001.
⁽¹⁾Refer to engine support fixture special tool assembly drawing below.

09200-2S100 Supporter

Removal and installation of the transaxle.
Use this bar (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S200) and adapter (SST No.: 09200-4X000).
⁽¹⁾Refer to engine support fixture special tool assembly drawing below.

09200-2S200 Supporter

Removal and installation of the transaxle.
Use this bar (SST No.: 09200-38001/3N000) with the adapter (SST No.: 09200-4X000) and supporter (SST No.: 09200-2S100).
⁽¹⁾Refer to engine support fixture special tool assembly drawing below.

09200-4X000 Adapter

Removal and installation of the transaxle.
Use this bar (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S100, 09200-2S200).
⁽¹⁾Refer to engine support fixture special tool assembly drawing below.

09453-3L240 Oil seal installer (2WD)

Installation of transaxle case oil seal.
[Using with bar (SST No.: 09231-H1100)]

09231-H1100 Bar

Installation of transaxle case oil seal.
[Using with oil seal installer (SST No.: 09453-3L240)]

09480-A3800 Inhibitor neutral fixed pin

Inhibitor neutral fixed.

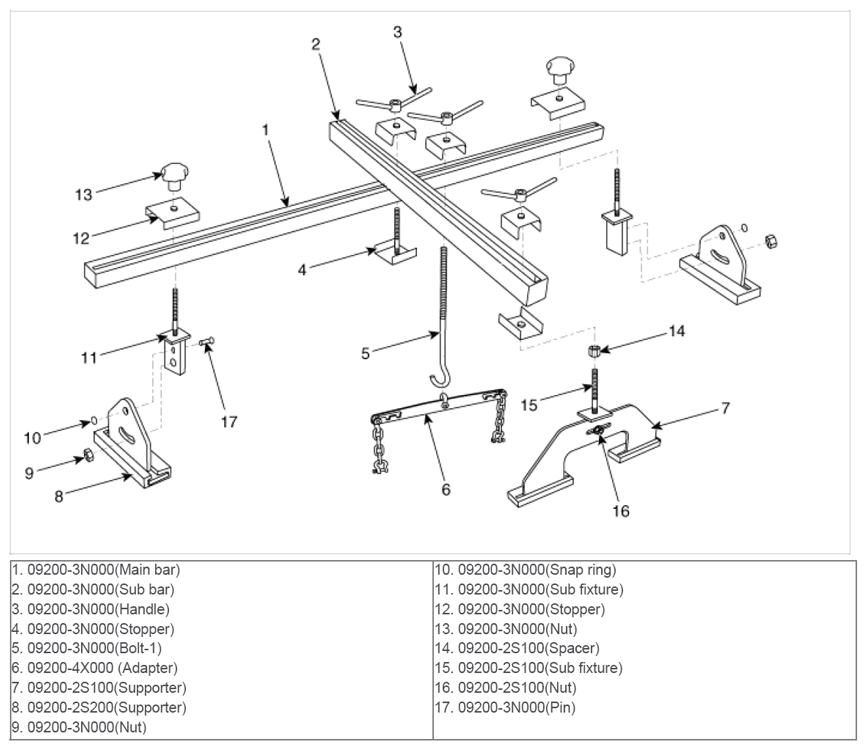

⁽¹⁾	Engine support fixture special tool assembly drawing

Fig 1: Engine Support Fixture Drawing

Courtesy of HYUNDAI MOTOR AMERICA
