Component Inspection

WARNING: This page is about a different car, the 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Check Parking Position Switch
1. IG KEY OFF.
2. Disconnect Parking Position switch connector.
3. Measure resistance between one and the other connector when parking postion switch ON and OFF.
  Specification:

  Measurement 1: Infinite (∞)

  Measurement 2: About below 1Ω

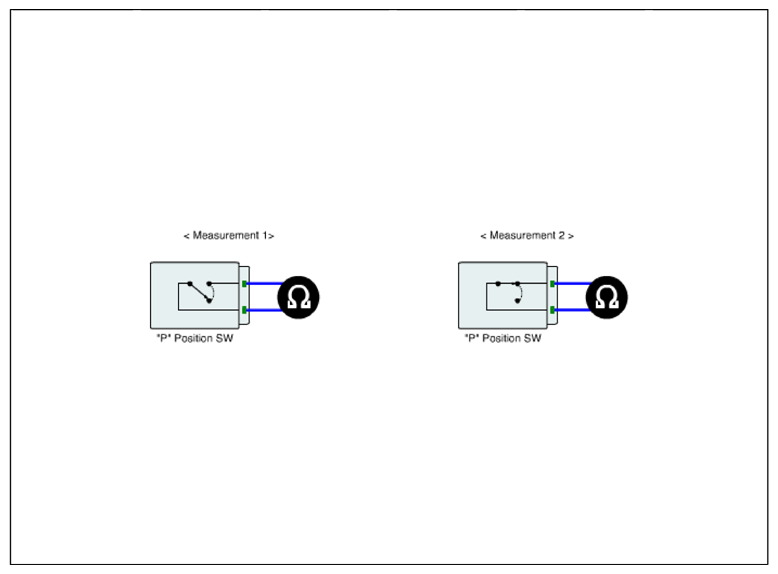

  Fig 1: Measuring Resistance Between Connectors (When Parking Postion Switch ON/OFF)
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?
  YES
  - Check poor connection between harness connector and Parking Postion switch or SMK Unit:
    Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good parking position switch and check for proper operation. and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
