Home >> Hyundai >> 2014 >> Veloster Turbo, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Turbo >> Knock Sensor (KS) >> Schematic Diagrams >> Circuit Diagram >> (A/T)

Circuit Diagram: (A/T)

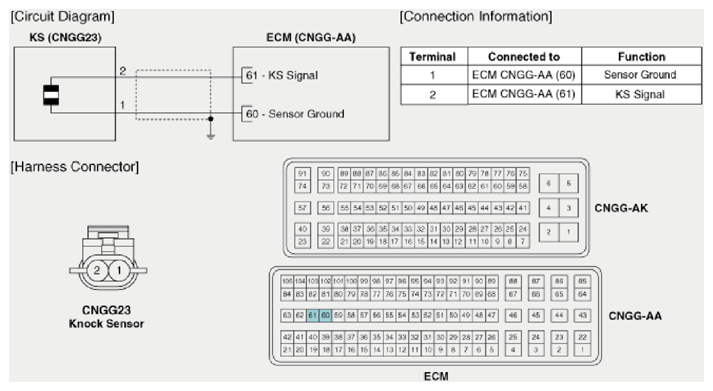

Fig 1: Knock Sensor Circuit Diagram (A/T)

G09151089

Courtesy of HYUNDAI MOTOR AMERICA
