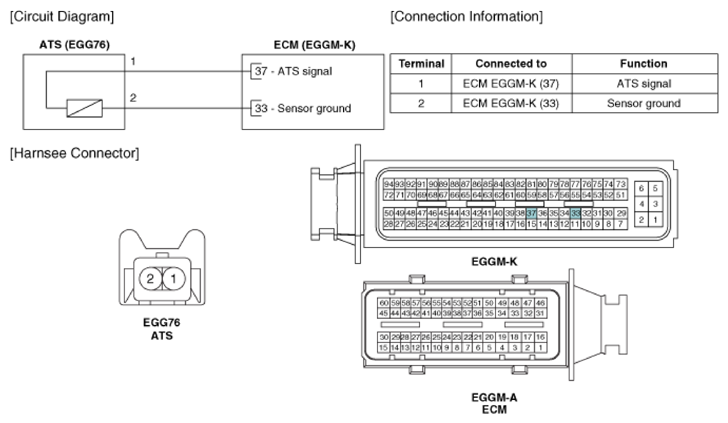

Home >> Hyundai >> 2014 >> Veloster Turbo, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Turbo >> Ambient Temperature Sensor (ATS) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
