Circuit Diagram: (M/T)

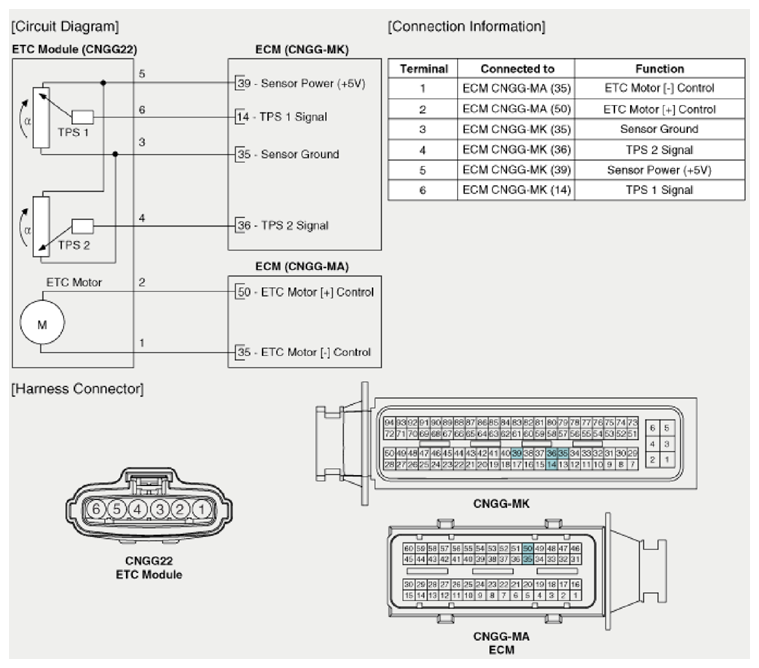

Fig 1: Electronic Throttle Control Module Circuit Diagram (M/T)
G09151047Courtesy of HYUNDAI MOTOR AMERICA
