Circuit Diagram: (A/T)

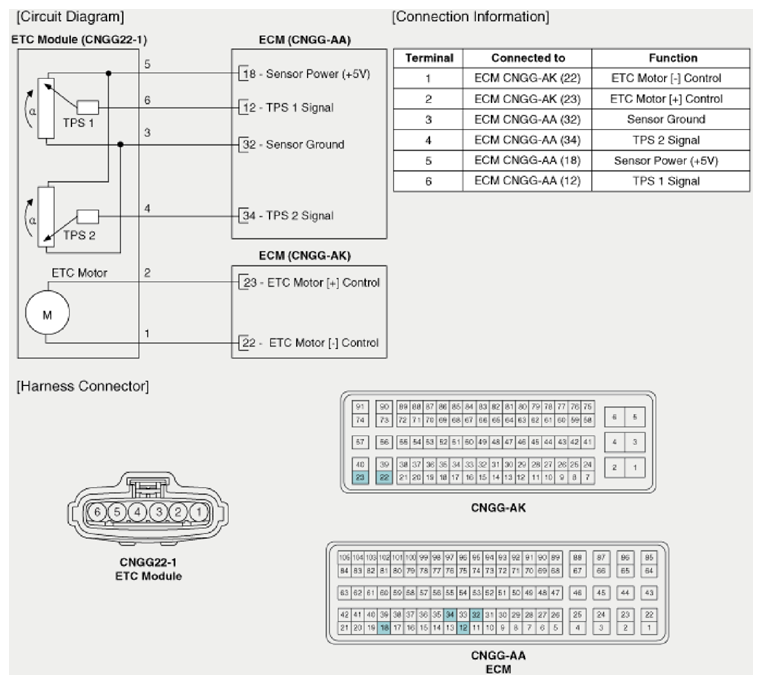

Fig 1: Electronic Throttle Control Module Circuit Diagram (A/T)

G09151048

Courtesy of HYUNDAI MOTOR AMERICA
