Body Repair

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

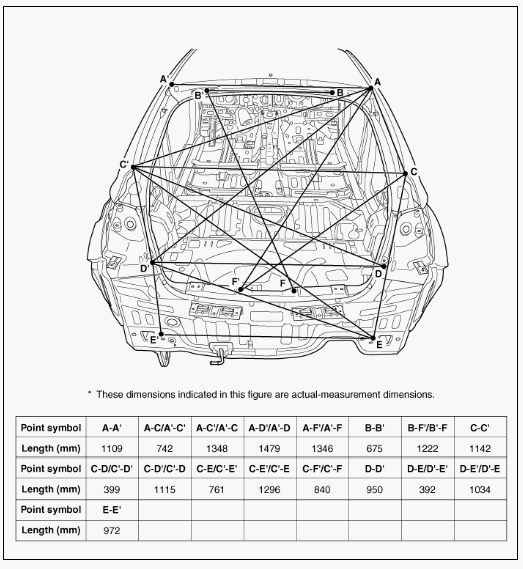

Fig 1: Identifying Rear Body Actual Measurement Dimensions
G08811030Courtesy of HYUNDAI MOTOR AMERICA

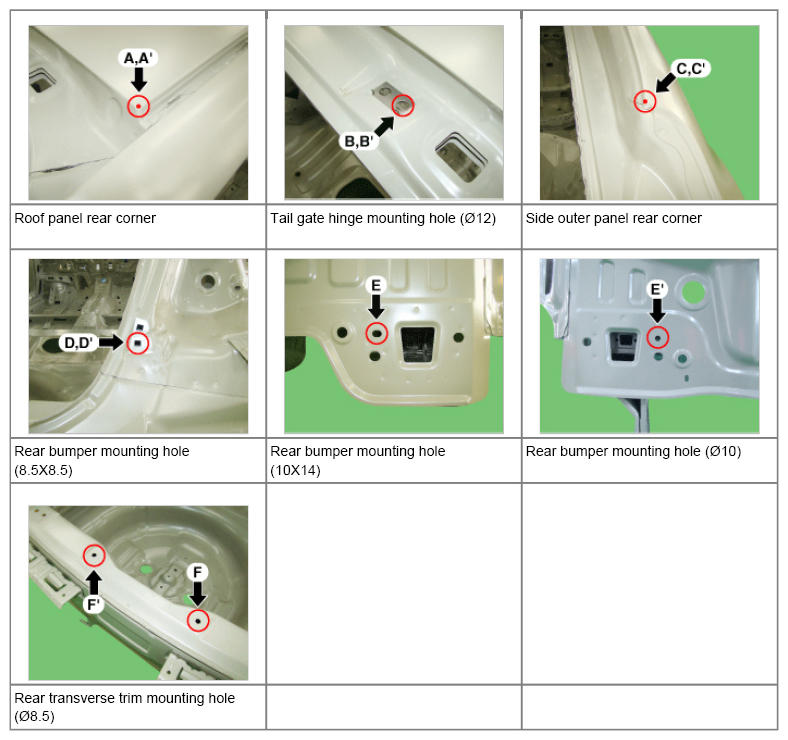

Fig 2: Locating Rear Body Measuring Points
G08811031Courtesy of HYUNDAI MOTOR AMERICA
