WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

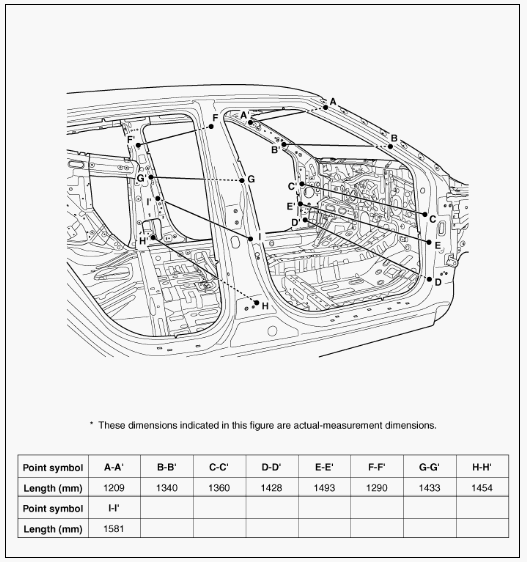

Fig 1: Identifying Body Interior A Actual Measurement Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

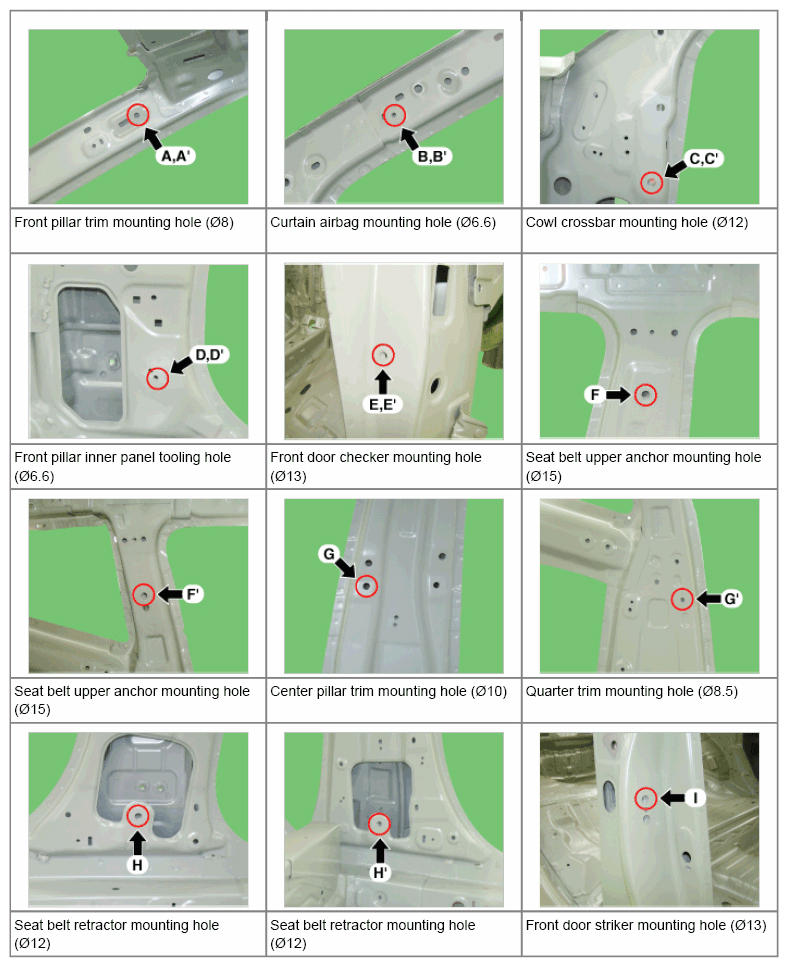

Fig 2: Locating Body Interior A Measuring Points (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

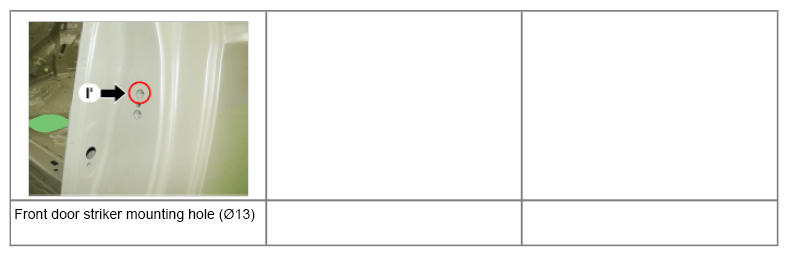

Fig 3: Locating Body Interior A Measuring Points (2 Of 2)
