Actual-Measurement Dimensions

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

These dimensions indicate the actual linear distance between measurement points, and are the reference dimensions for use if a tracking gauge is used for measurement.
Measure by first adjusting both probes to the same length (A=A').
NOTE: Check the probes and gauge itself to make sure there is no free play.

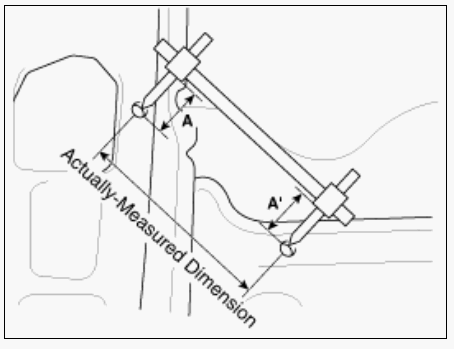

Fig 1: Measuring Actually-Measured Dimension And Height
Courtesy of HYUNDAI MOTOR AMERICA
