Front Body C

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

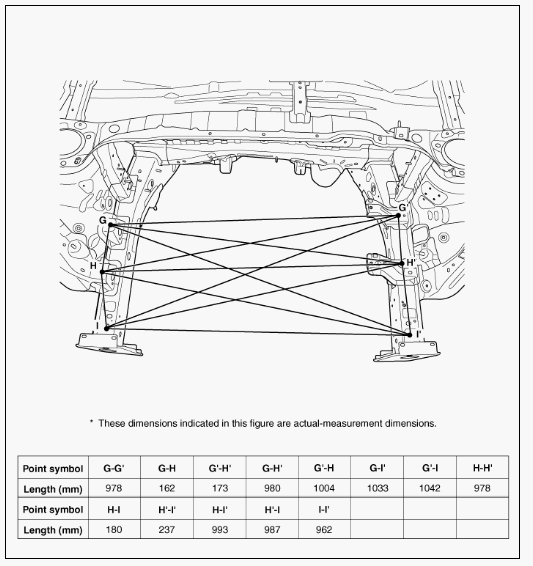

Fig 1: Identifying Front Body C Actual Measurement Dimensions
G08811009Courtesy of HYUNDAI MOTOR AMERICA

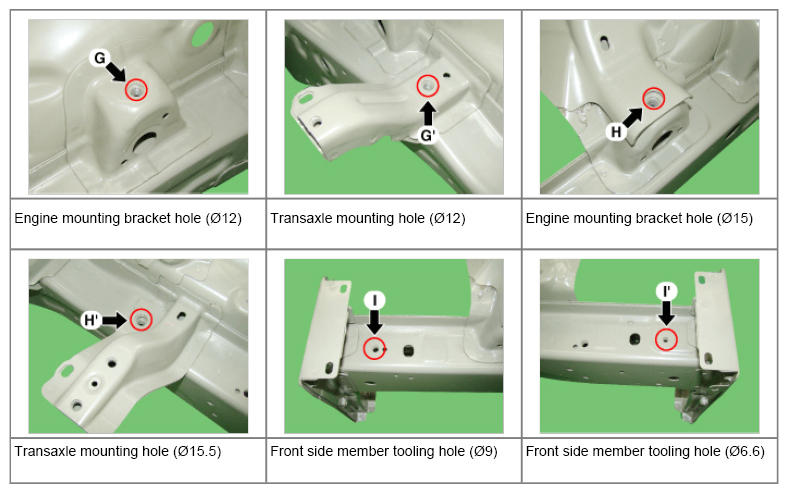

Fig 2: Locating Front Body C Measuring Points
G08811010Courtesy of HYUNDAI MOTOR AMERICA
