Section 19 (Body Dimensions)
>>
Front Body
>>
Body Repair
>>
Front Body B
Front Body B
WARNING:
This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

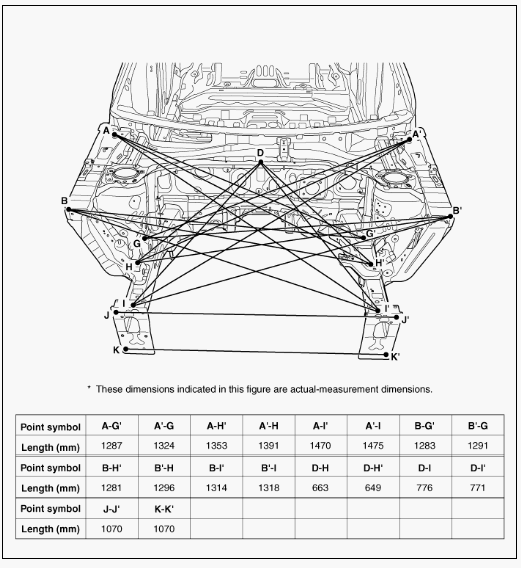

Fig 1: Identifying Front Body B Actual Measurement Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

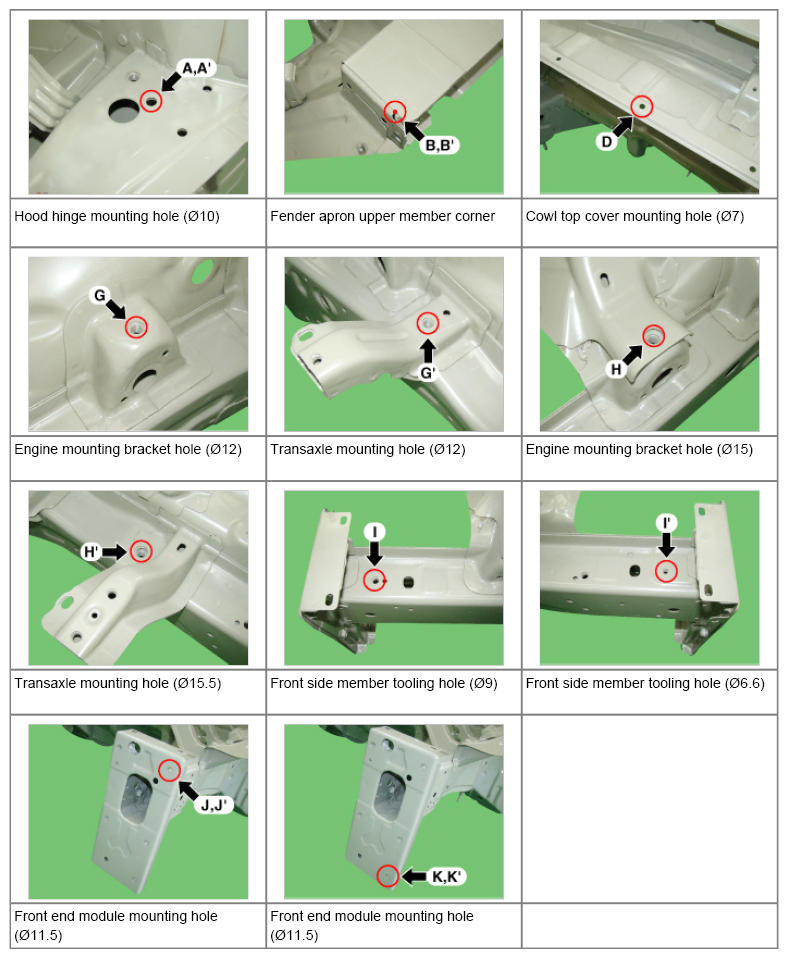

Fig 2: Locating Front Body B Measuring Points
Courtesy of HYUNDAI MOTOR AMERICA
