Front Body A

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

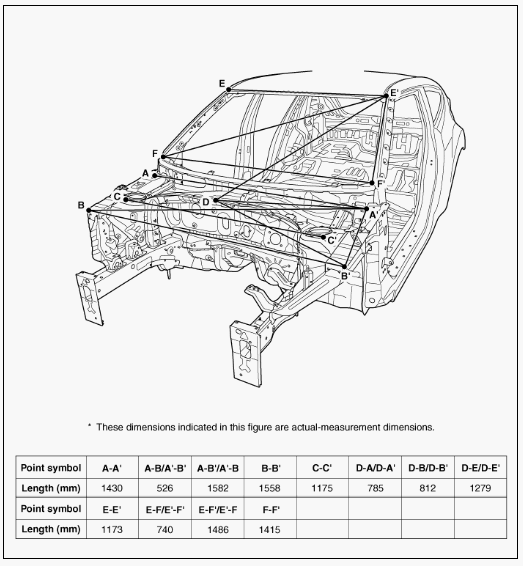

Fig 1: Identifying Front Body A Actual Measurement Dimensions

Courtesy of HYUNDAI MOTOR AMERICA

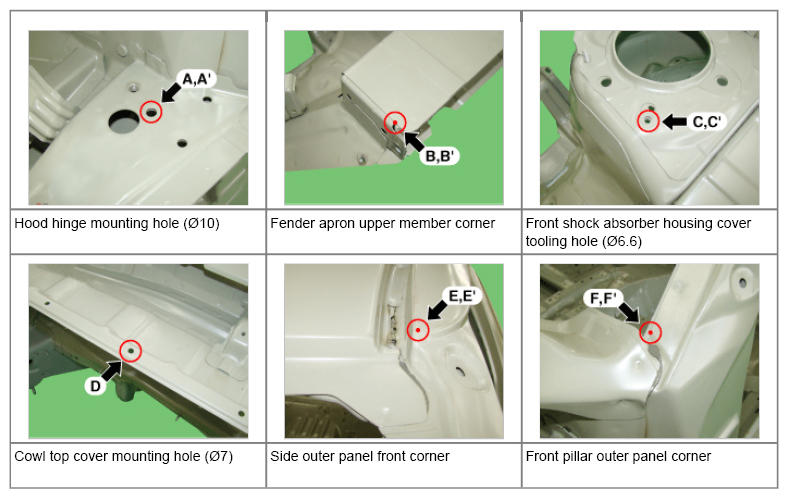

Fig 2: Locating Front Body A Measuring Points

Courtesy of HYUNDAI MOTOR AMERICA
