Repair Procedures: Replacement
- Stop the engine and uplift the vehicle with lift.

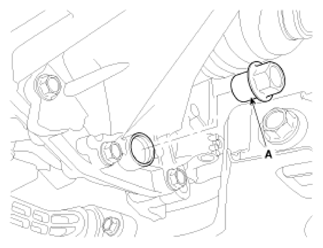

- Drain the manual transaxle oil after loosening the drain plug (A).
- Install the drain plug with new gasket.
Tightening torque:
58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)
- Add new oil through the filler plug hole and, fill it just below the plug opening.
Standard oil : SAE 75W/85, API GL-4
Oil capacity : 1.9 ~ 2.0 L (0.50 ~ 0.53 U.S.gal., 2.01 ~ 2.11 U.S. qt., 1.67 ~ 1.76 lmp qt.)
