Repair procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the air duct and air cleaner assembly.

    (For Turbo, refer to AIR CLEANER . For Non-Turbo, refer to Removal )

  3. Disconnect the starter cable (B) from the B terminal on the solenoid then disconnect the connector from the S terminal (A).

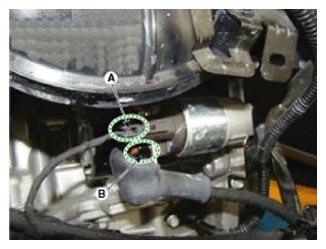

    Fig 1: Starter Cable With S Terminal
    G09150318Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the 2 bolts holding the starter, then remove the starter (A).

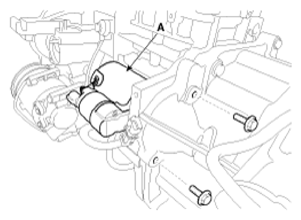

    Fig 2: Starter With Mounting Bolts
    G09150319Courtesy of HYUNDAI MOTOR AMERICA
