Horn Relay Inspection

  1. Remove the horn relay (A) from the engine room relay box.
  2. There should be continuity between the No. 30 and No. 87 terminals when power and ground are connected to the No. 85 and No. 86 terminals.
  3. There should be no continuity between the No. 30 and No. 87 terminals when power is disconnected.

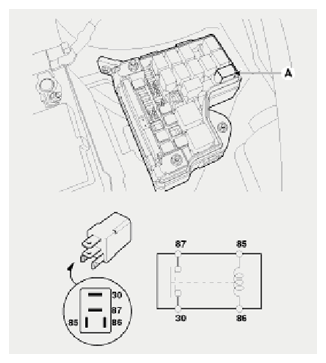

    Fig 1: Horn Relay Connector Terminal Identification
    G09134380Courtesy of HYUNDAI MOTOR AMERICA
    Fig 2: Continuity Reference Chart (Horn Relay)
    G09134381Courtesy of HYUNDAI MOTOR AMERICA
