Interior B

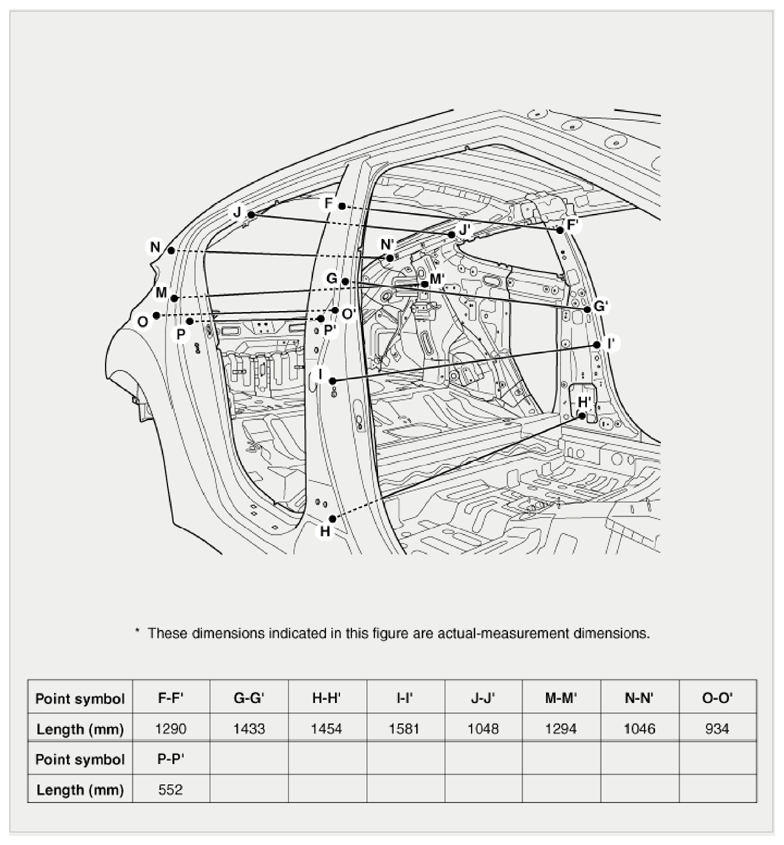

Fig 1: Interior B Measurement Dimensions
G09133964Courtesy of HYUNDAI MOTOR AMERICA

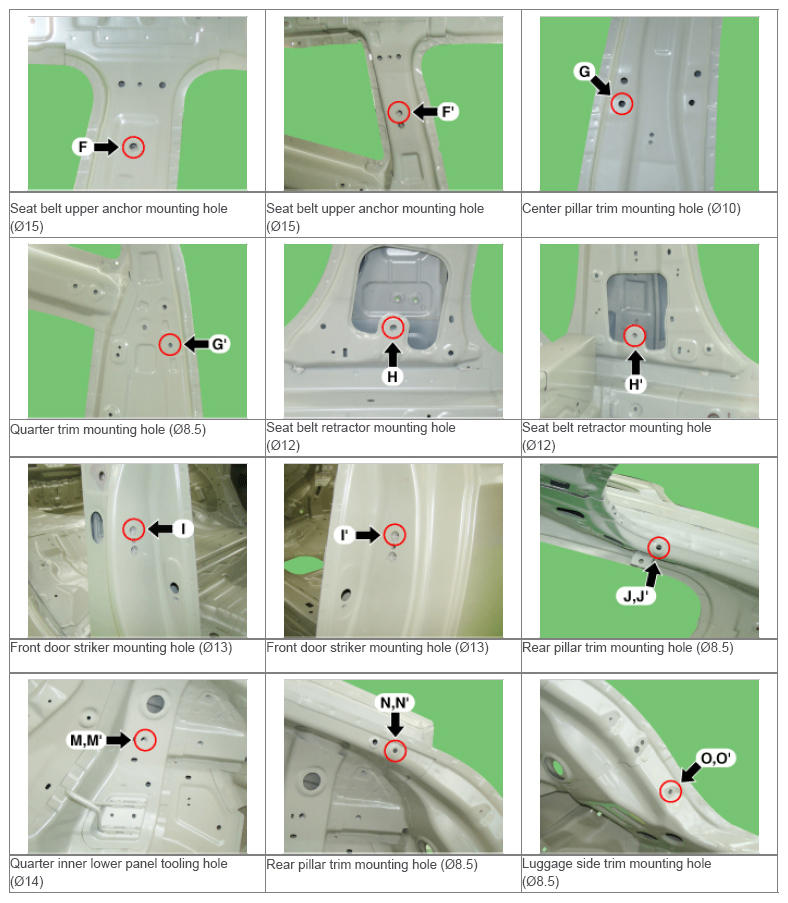

Fig 2: Locating Interior B Measurement Points (1 Of 2)
G09133965Courtesy of HYUNDAI MOTOR AMERICA

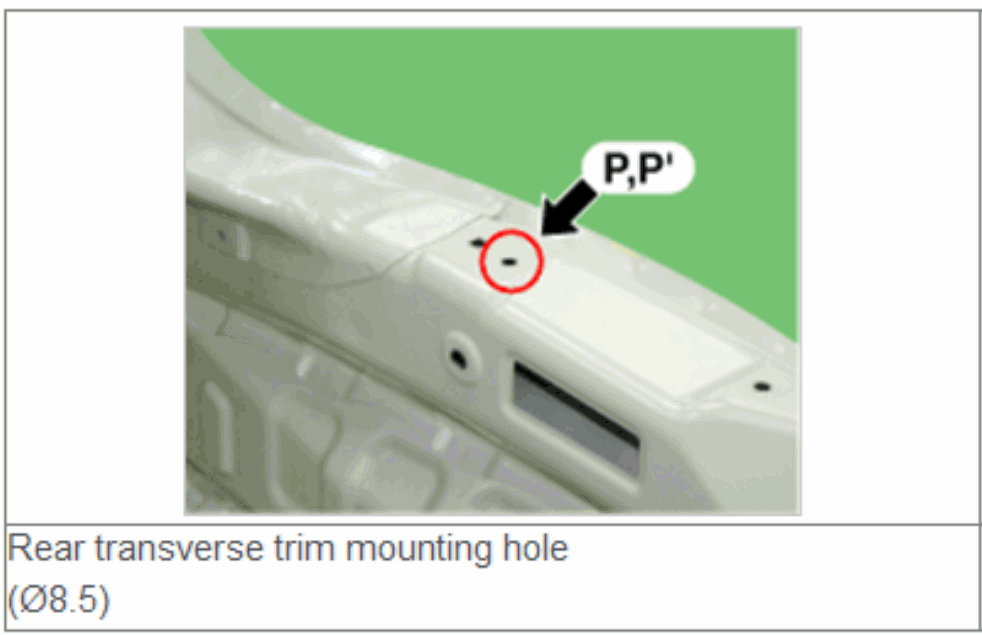

Fig 3: Locating Interior B Measurement Points (2 Of 2)
G00542569Courtesy of HYUNDAI MOTOR AMERICA
