Component Location

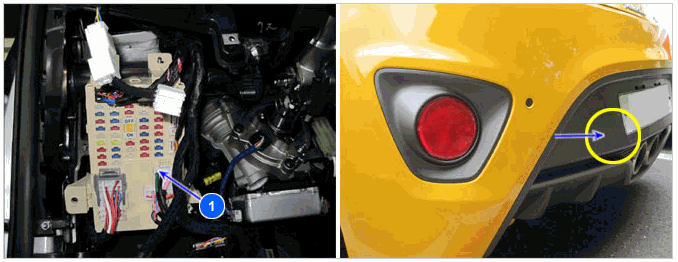

Fig 1: Identifying Rear Center Left Sensor And IPM

G00547587

Courtesy of HYUNDAI MOTOR AMERICA

1. IPM : Intelligent integrated Platform Module
