Home >> Hyundai >> 2014 >> Veloster Base, Standard Trans >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Mechanical >> Engine And Transaxle Assembly - Non-Turbo >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

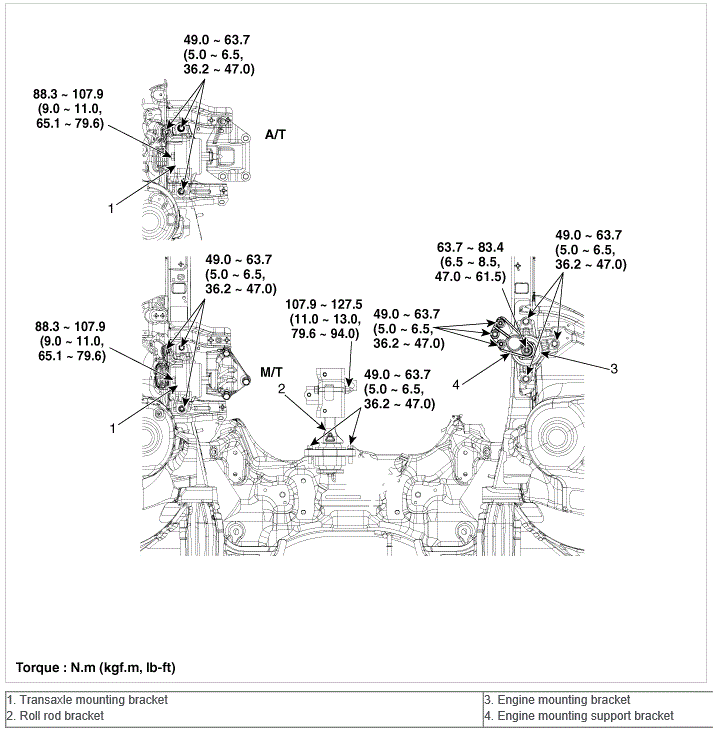

Fig 1: Engine Mounting Components With Torque Specifications

G00547195

Courtesy of HYUNDAI MOTOR AMERICA
