Home >> Hyundai >> 2014 >> Veloster Base, Standard Trans >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Water Temperature Control Assembly >> Components and Components Location >> Components

Components and Components Location: Components

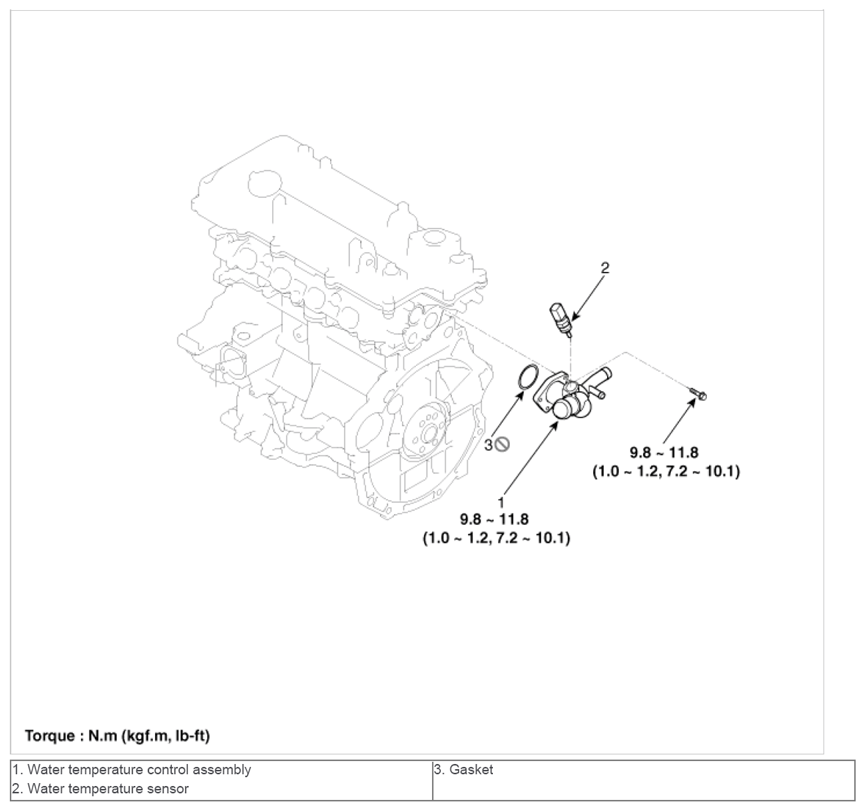

Fig 1: Water Temperature Control Assembly Related Components With Torque Specifications

G09150161

Courtesy of HYUNDAI MOTOR AMERICA
