Trunk antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk transverse trim.

    (Refer to "INTERIOR TRIM ")

  3. Disconnect the connector, then remove the trunk antenna (A) after loosening 2 nuts.

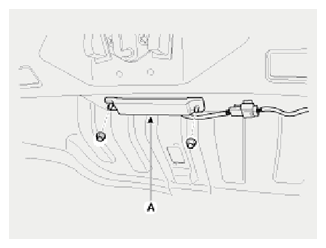

    Fig 1: Identifying Trunk Antenna And Mounting Nuts
    G09134492Courtesy of HYUNDAI MOTOR AMERICA
