Repair Procedures: Removal

Remove the following parts first:
1. Air cleaner assembly and air duct
  (Refer to AIR CLEANER .
2. Battery and tray
  (Refer to the CHARGING SYSTEM
3. ECM (Refer to REMOVAL
Place the shift lever in the N position.
Disconnect the shift actuator connector (A) and select actuator connector (B), and then remove the wire fixing clip.

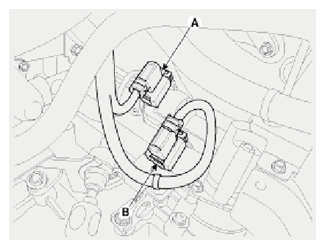

Fig 1: Identifying Shift And Select Actuator Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolt, and then remove the gear actuator (A).
Tightening torque:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

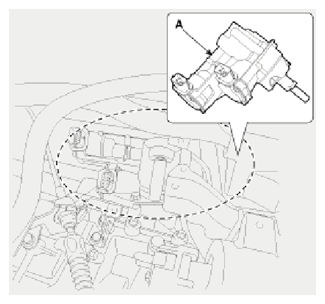

Fig 2: Identifying Gear Actuator
