Components Location: Notes

WARNING: This page is about a different variant/trim than selected.

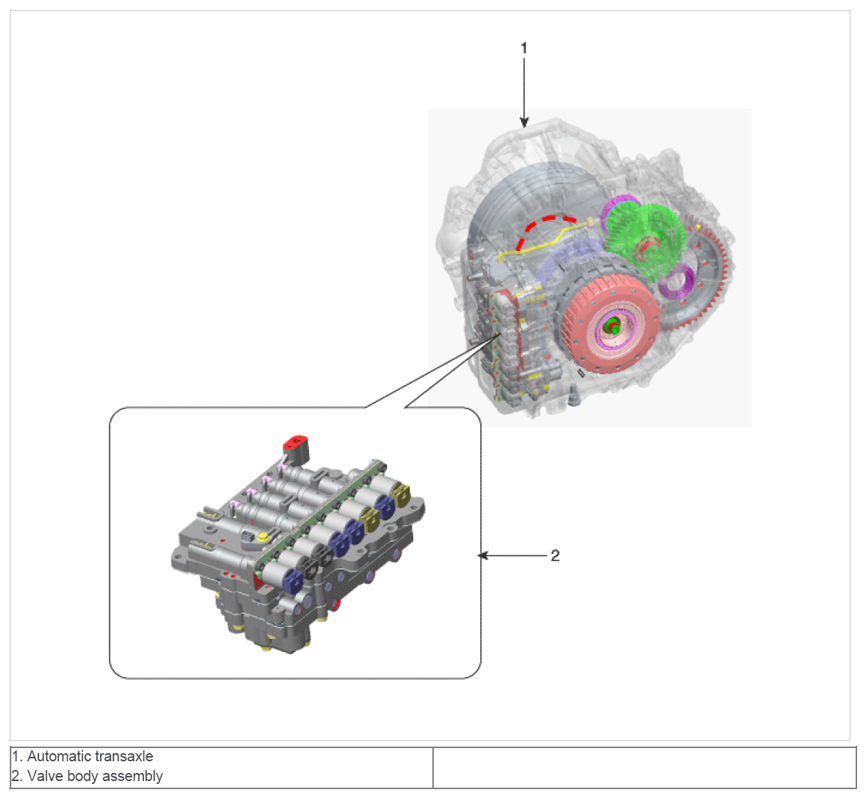

Fig 1: Valve Body Assembly Location
G09150568Courtesy of HYUNDAI MOTOR AMERICA

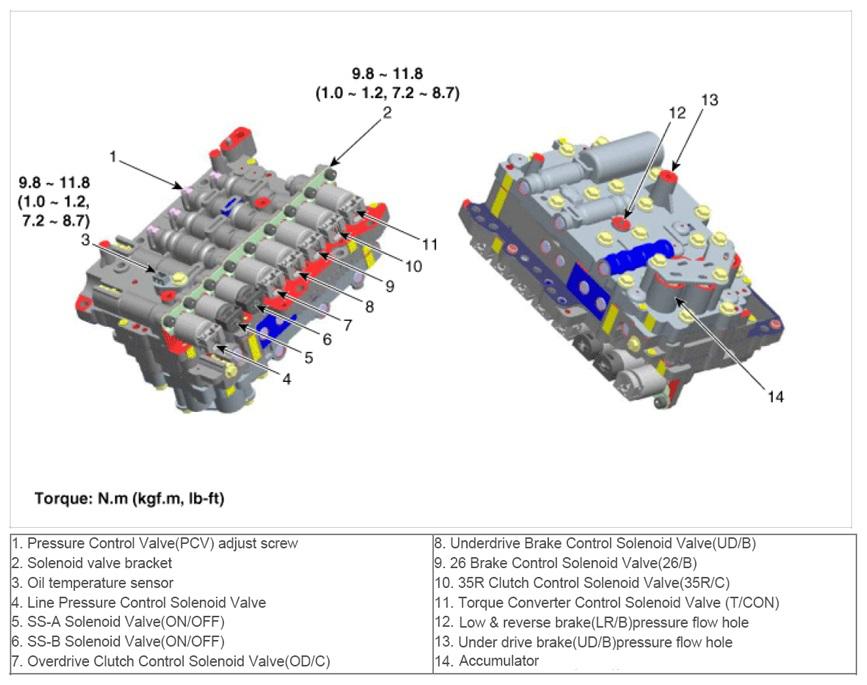

Fig 2: Valve Body Components With Torque Specifications
G09150569Courtesy of HYUNDAI MOTOR AMERICA
