Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

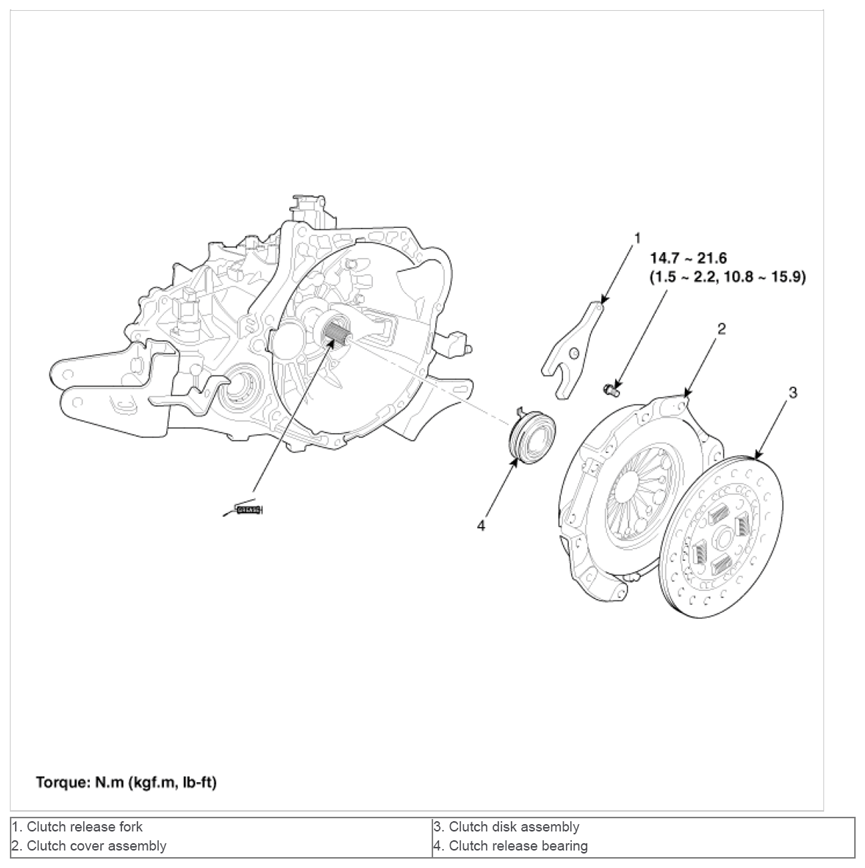

Fig 1: Clutch Release Fork, Clutch Cover Assembly, Clutch Disk Assembly And Clutch Release Bearing With Torque Specification
G09150448Courtesy of HYUNDAI MOTOR AMERICA
